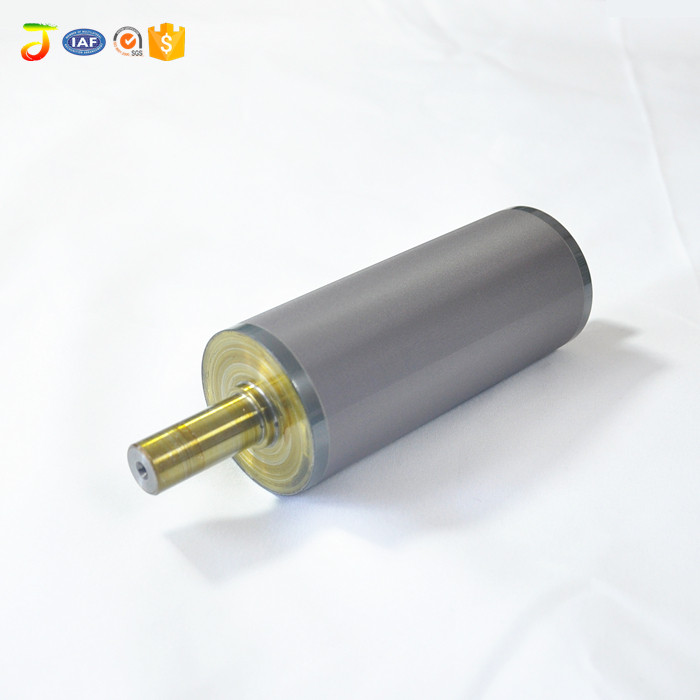

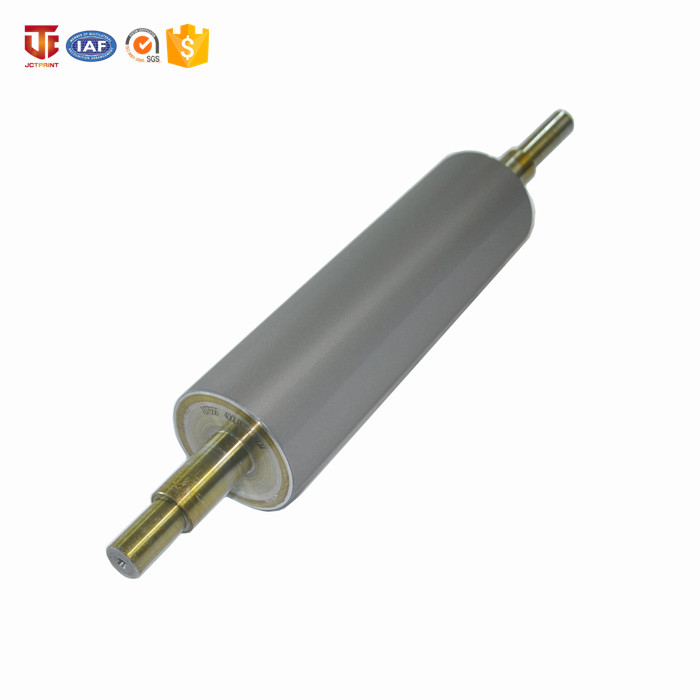

Offset flexo printing machine spare parts engraving Anilox Roll anilox plate flexo anilox cylinder
Offset flexo printing machine spare parts engraving Anilox Roll anilox plate flexo anilox cylinder Offset flexo printing machine spare parts engraving Anilox Roll anilox plate flexo anilox cylinder Offset flexo printing machine spare parts engraving Anilox Roll anilox plate flexo anilox cylinder Offset flexo printing machine spare parts engraving Anilox Roll anilox plate flexo anilox cylinder Offset flexo printing machine spare parts engraving Anilox Roll anilox plate flexo anilox cylinder

Offset flexo printing machine spare parts engraving Anilox Roll anilox plate flexo anilox cylinder

Product ID : JCT-WWG-S002
Product Tags :
Product Attributes :

Offset flexo printing machine spare parts engraving Anilox Roll anilox plate flexo anilox cylinder

1).Uniform cell shape,fast and even ink release;

2).Easy cleaning,ideal cell shape with smooth,steep walls and flat bottom;

3).Precise cell volume;

4).Longer life expectancy;

5).Good corrosion resistance;

6).High bond strength with base metal.



Product Description






Product overview

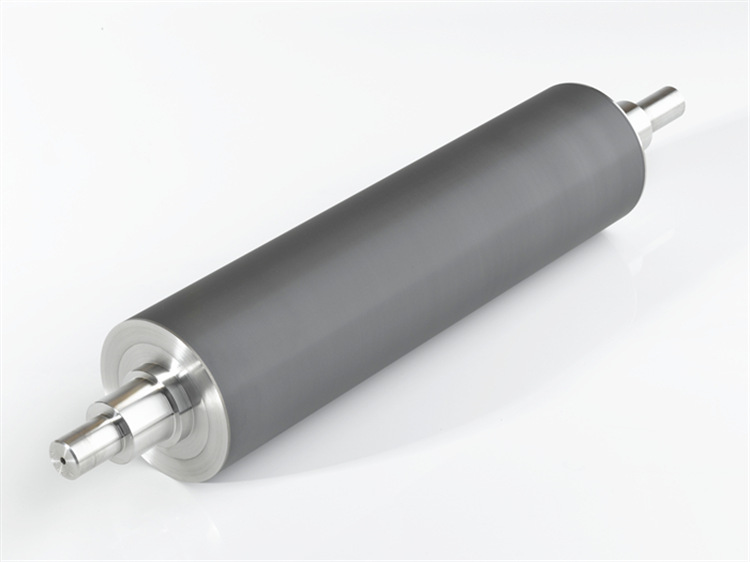

1.   What’s ceramic anilox roller?

The anilox roller is a quantitative transfer roller. The ink (or glue) that the anilox roller can transfer depends mainly on the number of cells  (the lines’number per inch) and the cell volume.

ww-s官方 (5).jpg

2.  Usage of ceramic anilox roller

1).Flexo printing machine(unit type ,central cylinder type,cascade type for Label , Envelope , Paper Forms , Handbag, Corrugated Box, Plastic Film printing)

2).Corrugated water-based ink printing slotting machine

3).Coating and lamination machine

4).Glazing machine ect.


3. Specifications of our ceramic anilox roller

Screen count range(LPI): 80-2000 LPI

Surface hardness: 1250HV-1350HV

Engraving angle( Screen angle): 1-89 degree

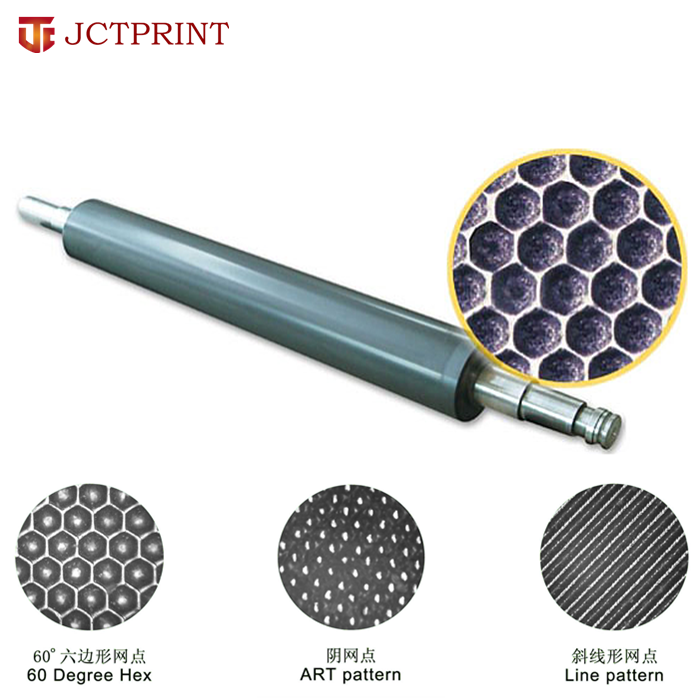

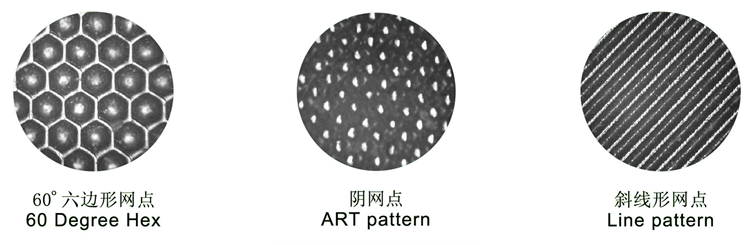

Cell shape : 30°honeycomb, 60°honeycomb(hexagon), 45°diamond(quadrangle,ART pattern ),curved flow, slanted(line pattern)or according to your actual requirement.

4.Why choose us?

1)    Material advantage

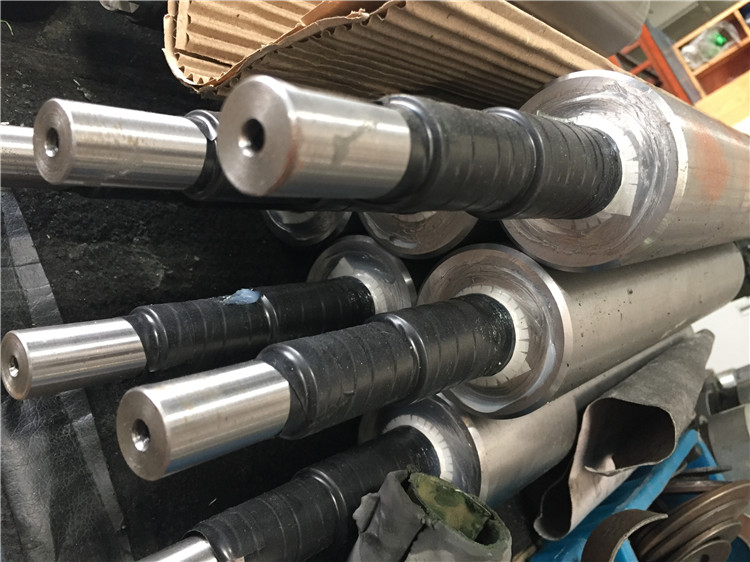

Base roller: 45# seamless steel or No5 series aluminum

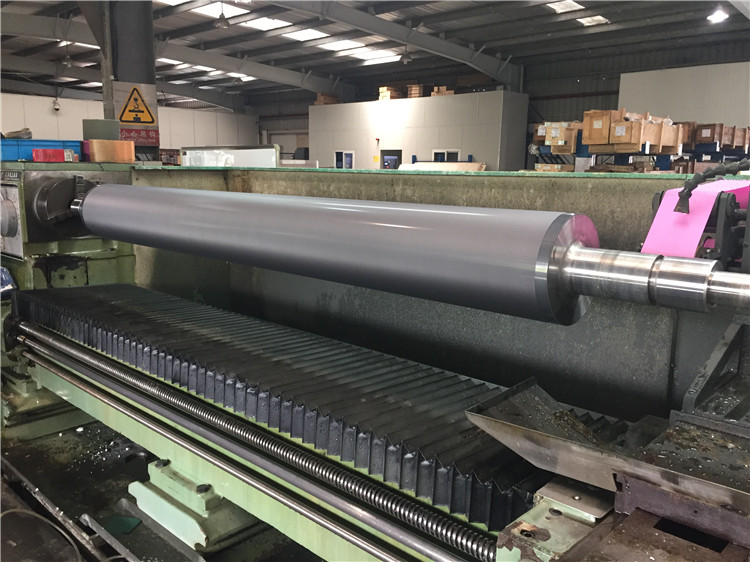

We adopt 45# seamless steel tube and the thickness is from 15mm-25mm based on the dimension of the roller.

And we can also use No5 series aluminum as the base roller if the customer wants lighter weight.

Surface coating: Chrome oxide ceramic

We use the famous plasma spraying machine from Switzerland supplier to do the coating spray. The evenness of 80% ceramic powder can be controlled between 15u-35u .

The hardness of  chrome oxide ceramics can reach 1200HV-1350HV.

raw material1.jpg

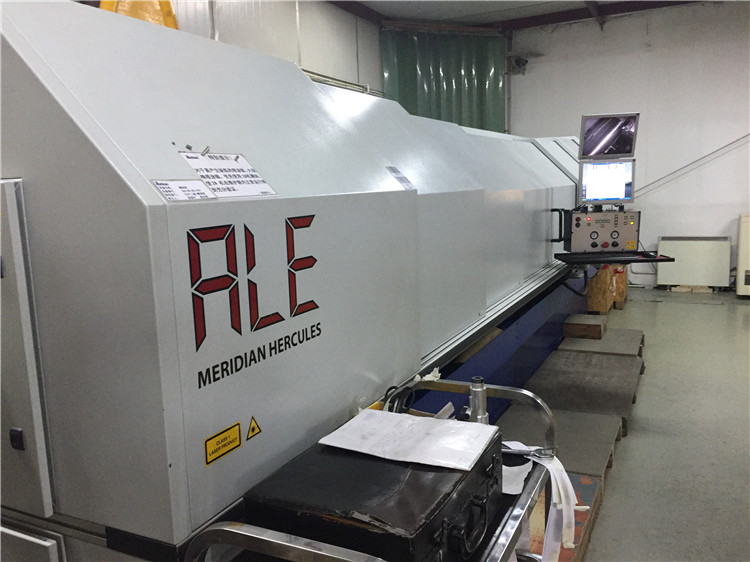

laser engraving machine.jpg

2) Technical advantage

Antiseptic treatment

we use the nanoscopic sealant  to coat on the surface of the ceramic which can reach the tiny cell to protect the base roller from solvent corrosion.

Trial engraving to assure the precise delivery on the ink

First, We make  trial engraving before the real engraving.

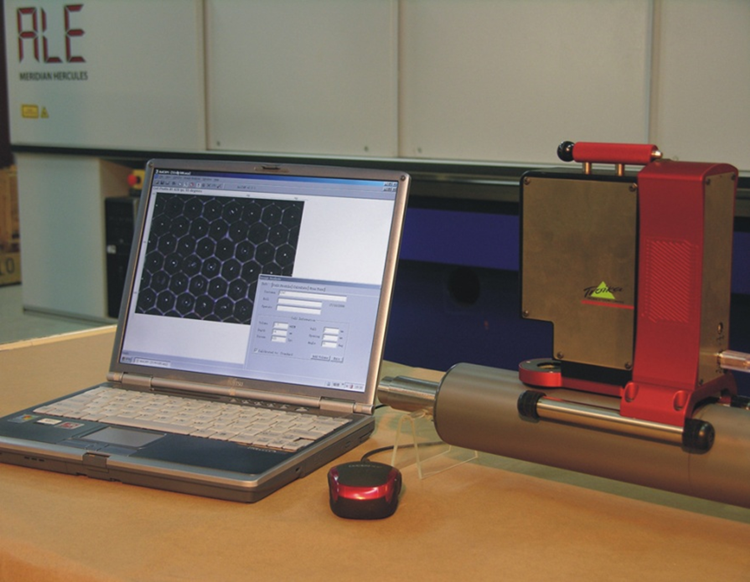

Second, we use  the scanner to scan each layer to test the volume of the cell

Third, according to the realationship between the LPI and BCM , we can make sure whether  the LPI  is ok.


3)  Quality advantage

Quality control system

We have the quality control system during the whole production from the very beginning to the end  to make sure each roller is qualified.

For the base roller, we will check their surface roughness,straightness, dynamic balance,cylindricity and so on,we will do such incoming inspection on every rollers.

An anilox quality certification will be issued to our customer after each ceramic anilox roller is finished.


Long Service life:8-10years

Under  nomal operation and maintenance,our ceramic anilox rollers can work  8-10years or even longer.

certificate .jpg

5. Packaging

We have two types of packaging wooden box and strong carton.

finished products.jpg

ww-s官方 (30).jpg






Company Information



公司介绍 (6).jpg

公司介绍 (5).jpg

公司介绍 (3).jpg

公司介绍 (10).jpg

Helen Shen

Jinan Jinchangtai Industry And Trade Co., Ltd

Add:Lushangshengjing Plaza Building B-1406, No.6 Qingfeng Road,

Jinan, Shandong, 250014, China

Tel:0086-0531-61300169

Fax:0086-0531-61300169

Mobile/wechat/Whasapp/skype:0086-18660813189

Email:[email protected]

http://www.jctprinting.com/








FAQ:

1.How can I get a quotation?

Please advise the following information to our email address or add me on whatsapp,wechat and so on.

A.The drawing of the ceramic anilox roller if possible(or you can get a estimate price by telling us the total length,effective face length,diameter as the following picture.

B.LPI an BCM

C.Where do you use the ceramic anilox roller?flexo printing machine,coating machine or offset UV unit?

Helen Shen

Tel:0086-0531-61300169

Fax:0086-0531-61300169

Mobile/wechat/Whasapp/skype:0086-18660813189

Email:[email protected]



2.What’s the difference between metal aniloxroller and ceramic anilox roller?

Metal anilox rolls are made by mechanical extrusion or chemical etching.

The highest LPI it can be made  is 300LPI.

Advantages: low cost

Disadvantages: unable to transfer ink to high-line printing plates, easy to wear.

Ceramic anilox roller uses laser engraving to make cell, the highest LPI can reach

2000LPI.

Advantages: It can be suitable for high screen printing, uniform ink transfer and good wear resistance.

Disadvantages: need to be cleaned frequently



3. I don’t know the BCM of the anilox roller,what should I do?

If you don’t have special request on BCM ,we will recommend you the standard type.



4.What's the delivery time?

Around35days after pre payment received,and it also depends on the quantity you want.



5.What’ s the terms of payment?

Usually T/T 100% in advance payment.We can also accept Western Union,paypal and credit card.
