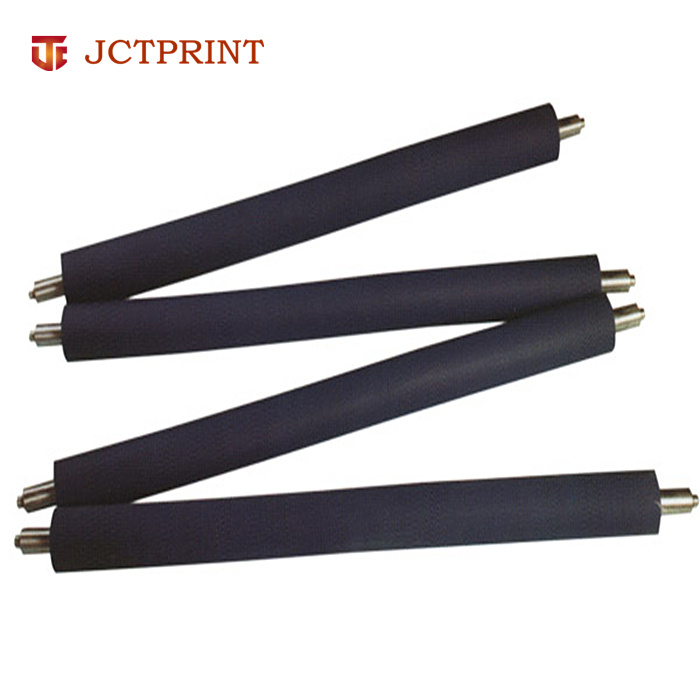

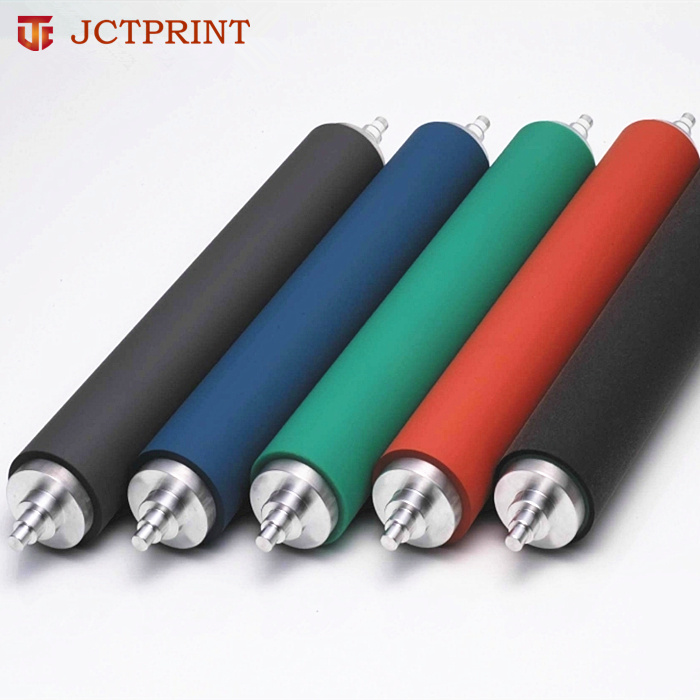

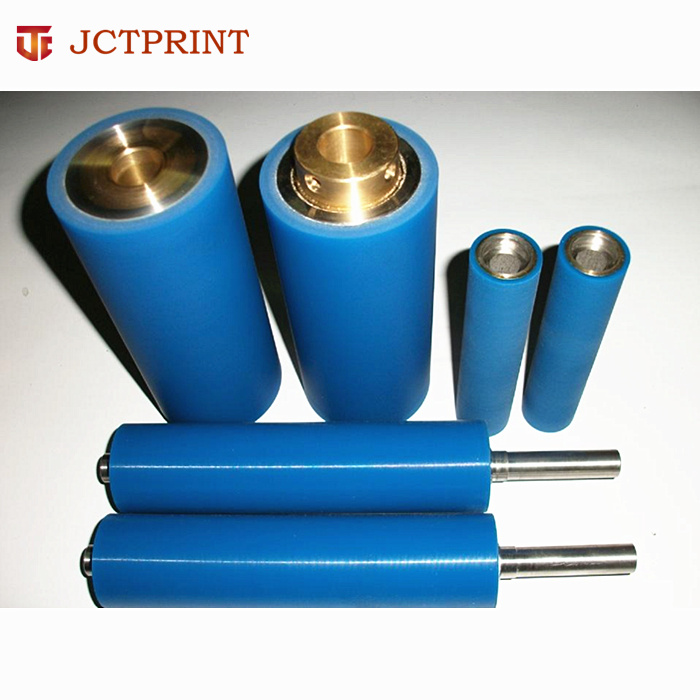

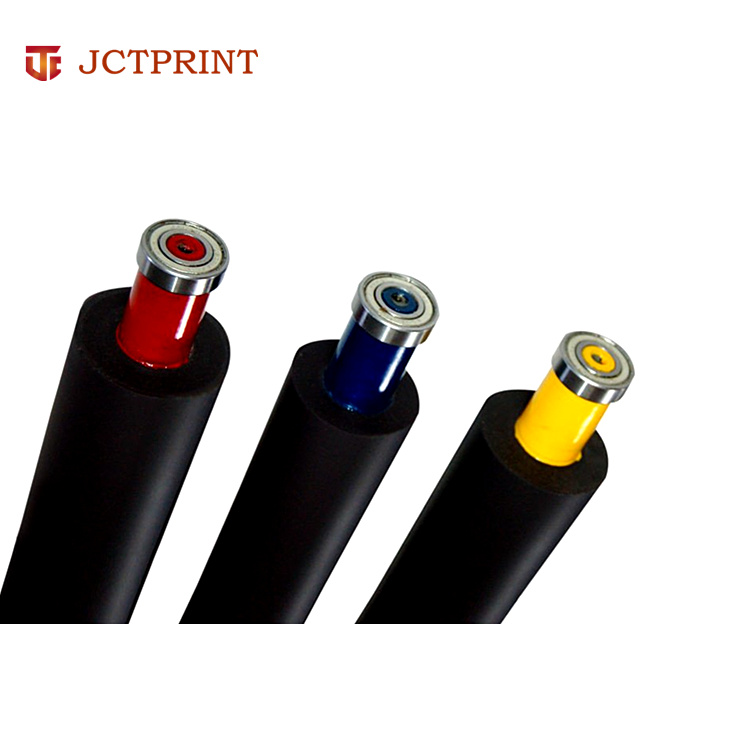

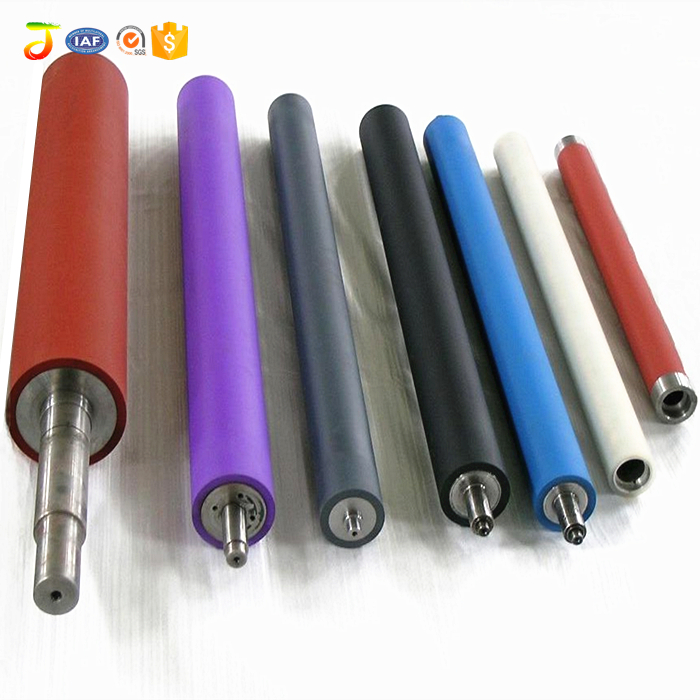

NBR rubber roller for offsetting  machine
NBR rubber roller for offsetting  machine NBR rubber roller for offsetting  machine NBR rubber roller for offsetting  machine NBR rubber roller for offsetting  machine NBR rubber roller for offsetting  machine

NBR rubber roller for offsetting machine

Product ID : JCTPRINT-RR-P001
Product Tags :
Product Attributes :

The printing rubber roller has moderate hardness and elasticity, high oil resistance, washing solvent resistance, abrasion resistance and shape stability. Soft rolls are generally made of SBR, CR and PU. The surface of the hard stick was originally made of copper and later replaced with polyester resin.

Product Description




 NBR rubber roller for offsetting  machine



Product Description

 1. Features of rubber roller

1.Ozone and Chemical resistance

2.Anti-aging, good flexibility, good elasticity

3.Excellent oil resistance

4.Clean and healthful for many food and medical applications



2.Specification of rubber rollers



size According To Customer's Drawing
(For offset printing roller,please tell us the model  and we can check if we have the drawing )
Dimension 10MM-1500MM,Length:50MM-8200MM
Material NBR,Silicone,Rubber,Polyurethane,EPDM, hypalon ETC
Hardness 18A-100
Tolerance 0.05mm
Temperature According customers's requirements
Color Red, Black, White, Clear, etc can do the color base on your pantone NO.
Roll core stainless steel,45#steel or 20#steel or 5#aluminum seamless pipe




.jpg

Application

 Rubber roller application in all industries

Industry Name
Rubber roller for textile industry Glue roller
Dispensing roller
Skew roller
Silk roller
Dyeing roller
squeezing roller
Rubber roller for plastic industry Winding roller
Paint roller
Extrusion roller
Tension roller
Rubber roller for Steel industry and metallurgy industry  Pickling roller
Laminating roller
Cleaning roller
Reversing roller
Extrusion roller
Conveying roller
Rubber roller for Paper making industry Stone roller
Corner roller
Winding roller
Paint roller
Extrusion roller
Tension roller
Rubber roller for Printing and dyeing Ink ductor roller
Intermediate roller
Transfer roller
Ink form roller
Ink vibrator roller
Water ductor roller
squeezing roller
spreading roller



Advantages



Advantages of our rubber roller



A.Raw materials :

1) Base roller:

We are using  #45 steel , #201stainless steel #304stainless steel and 5# aluminum seamless pipe as the base roller.And we are adopting a reasonable thickness base roller according to customer’s drawing. Some manufacturers will reduce the thickness of the steel pipe in order to get the price advantage.Such roller can’t meet the standards.But we won’t do that.



2)Rubber:
Our rubber are all imported from Germany or the US and then we mix them in our factory.The rubber coating technical we are using is winding technical. we casting the rubber on the base roller layer by layer and then vulcanize it to make the green rubber into mature rubber.

While other manufacturers are using sheet coating technical,and the rubber is cold in processing and will cause adhesion problems easily.

pk .png

B. Production process:

1) Hot charging technicals:

Adopt hot charging technicals to install the shaft head, and then weld after contraction to ensure the quality of shaft installation.While other supplier are welding the shaft head directly.

2)Dynamic balancing:

We will do 3 times of dynamic balancing test in the process of production of each rubber roller,which will ensure the using effect. In general,If it can displayed within 10g on the dynamic balancing device, it is called dynamic balancing. But we can do less than 2g.


 3)Testing by making small sample before mass production

We will make a small sample before the official production, after vulcanization, 24 hours later we will check the hardness, color, and Impurity situation. We will control the hardness tolerance within 3degree. If it is not qualified we will change the formulated immediately and to make the sample again till all the data reach the customer’s request.

.jpg

C. Quality control Department

Using all-imported laser tester to ensure that the geometric size and the accuracy of the roller can reach 0.01 mm;
