Mechanical air shaft for bag making machine
Mechanical air shaft for bag making machine Mechanical air shaft for bag making machine Mechanical air shaft for bag making machine Mechanical air shaft for bag making machine Mechanical air shaft for bag making machine

Mechanical air shaft for bag making machine

Product ID : JCT-FR-L005
Product Tags :
Product Attributes :

The air expansion shaft is suitable for retracting and reeling of related machinery such as coating, printing, slitting, compounding, paper making, bag making, plastics, etc., which can effectively improve work efficiency.

Product Description

Mechanical air shaft for bag making machine

1.Application:

The air expansion shaft is suitable for retracting and reeling of related machinery such as coating, printing, slitting, compounding, paper making, bag making, plastics, etc., which can effectively improve work efficiency.

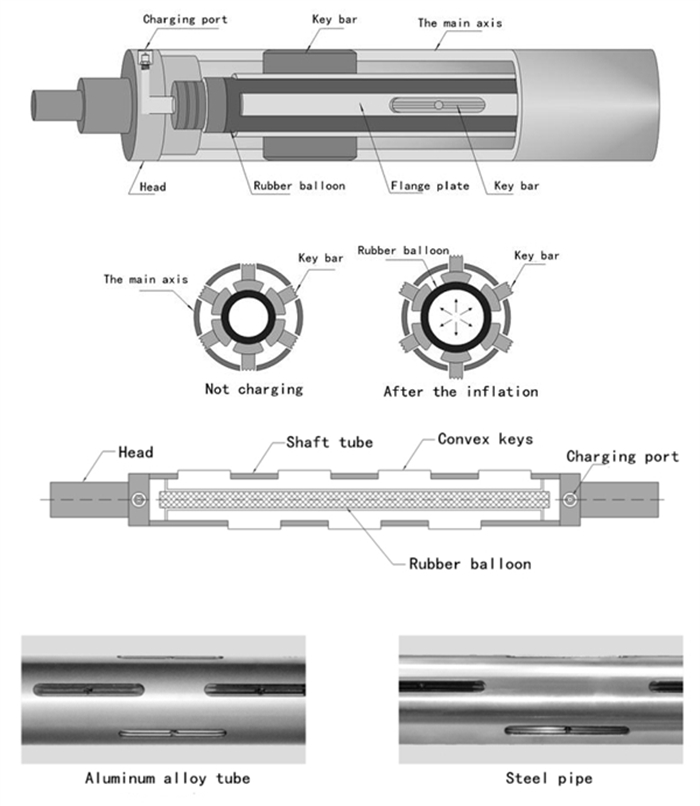

2.Product schematic:

3.Introduction:

The air expansion shaft is  a kind of special-made shaft  for winding or unwinding , when it inflated by  high-pressure, the surface of it can be raised up and after deflating the air,the surface will quickly retract .It is widely  used in the manufacturing process and light metal industry.The advantage of using an air shaft  is that it can greatly improve the working effeciency.

4.Specification:

Type

Unaerated diameter(ømm)

Inflated diameter(ømm)

Applicable volume tube inner diameter(ømm)

1″

24.8

24.8-28

25-26

1.5″

37

40-42

38-38.5

2″

49

52-54

50-51

3″

74-75

80-82

75.5-78

4″

99-100

104-106

101-102

5″

125

130-133

126-128

6″

150

154-156

151-153

8″

200

206-264

202-204

10″

250

260-264

252-256

12″

300

308-310

302-305

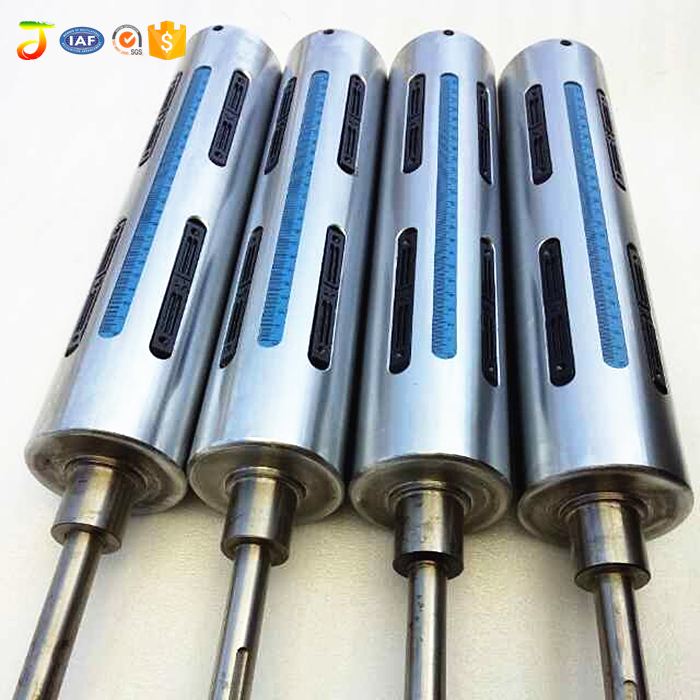

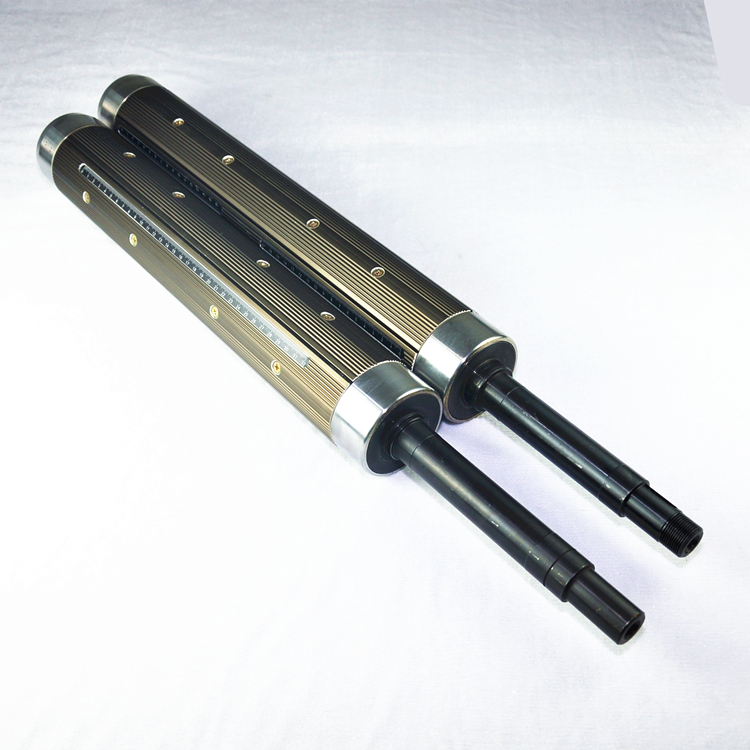

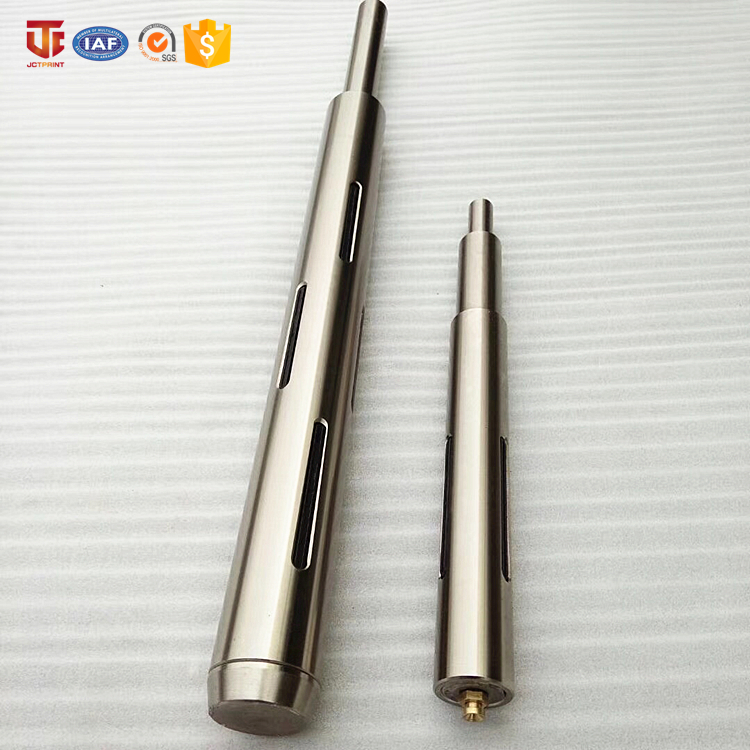

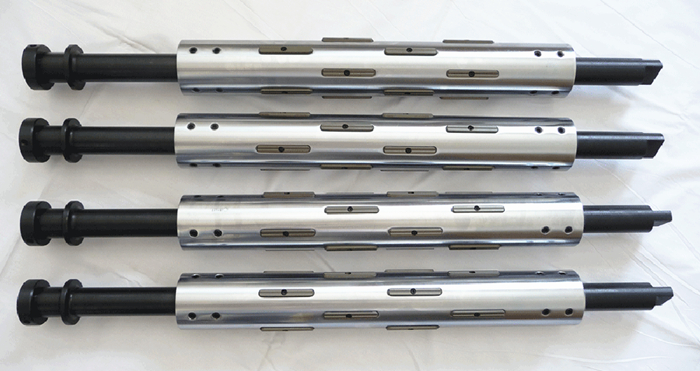

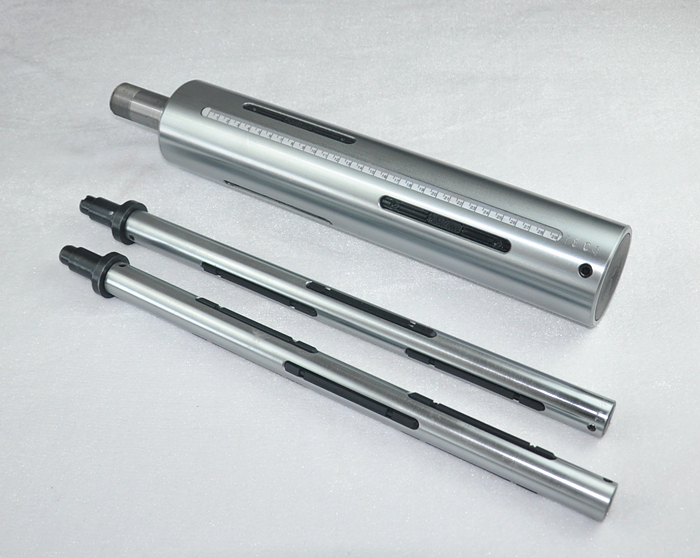

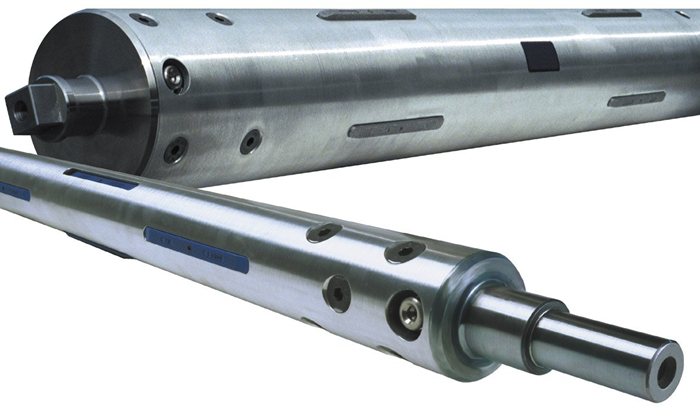

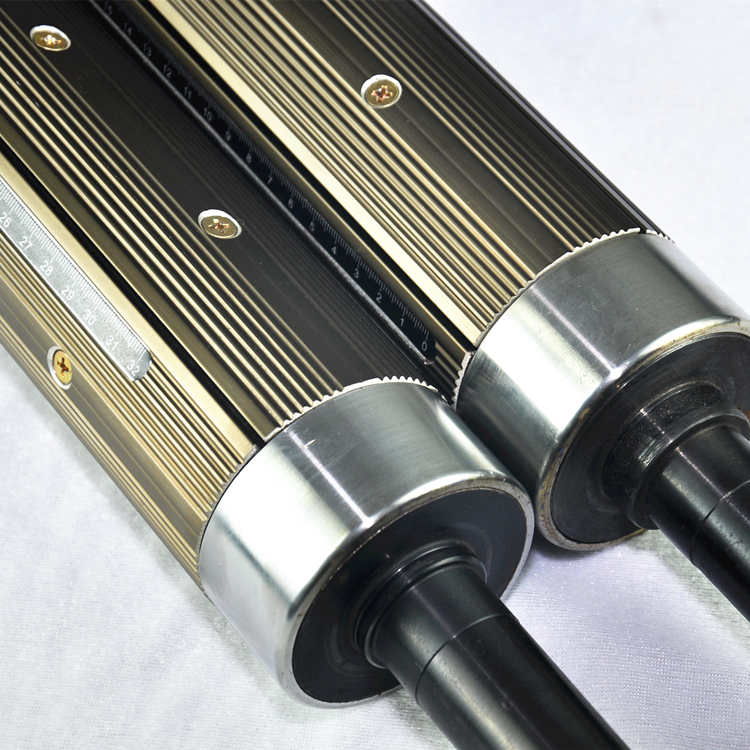

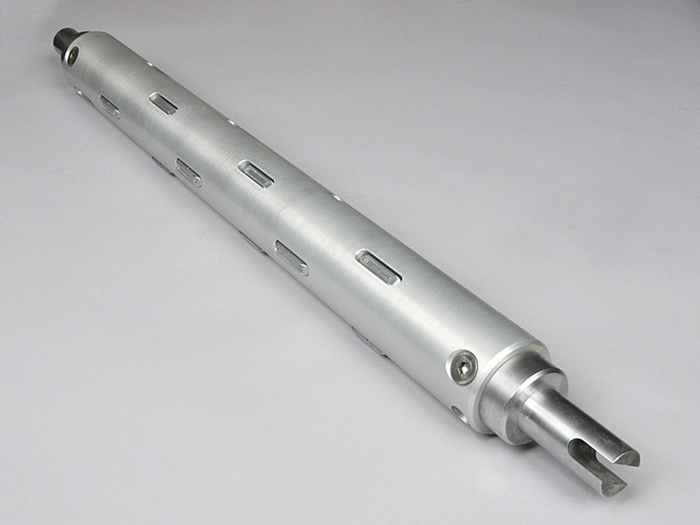

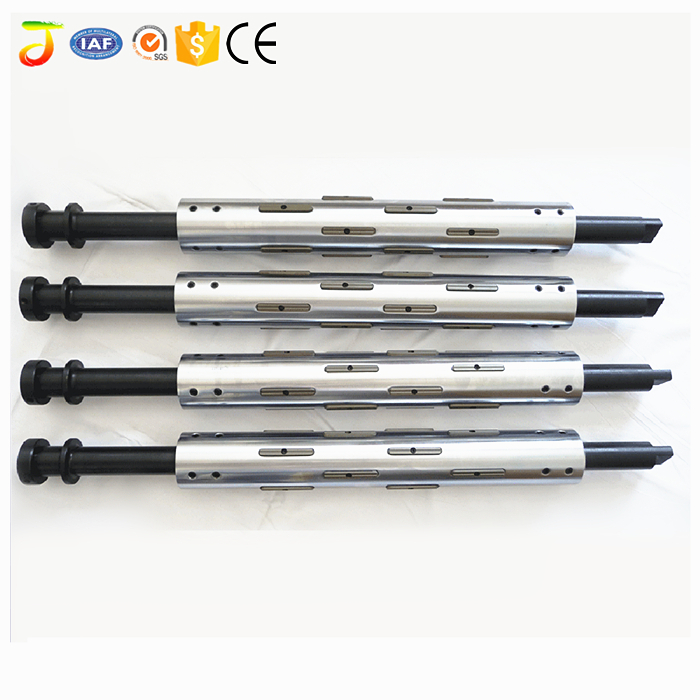

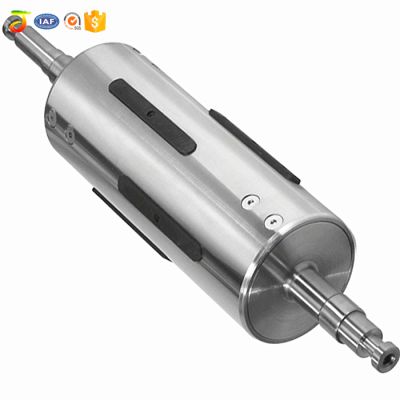

5.Product pictures

Packaging:
