Key strip type 3inch 6inch Air shaft adapter air drum for air expanded shaft
Key strip type 3inch 6inch Air shaft adapter air drum for air expanded shaft Key strip type 3inch 6inch Air shaft adapter air drum for air expanded shaft Key strip type 3inch 6inch Air shaft adapter air drum for air expanded shaft Key strip type 3inch 6inch Air shaft adapter air drum for air expanded shaft Key strip type 3inch 6inch Air shaft adapter air drum for air expanded shaft

Key strip type 3inch 6inch Air shaft adapter air drum for air expanded shaft

Product ID : JCT-QZT-S003
Product Tags :
Product Attributes :

Key strip type 3inch 6inch Air shaft adapter air drum for air expanded shaft

Set outside the 3 inch air shaft, can achieve the 6 inch efficient.

for Rolling Unreeling Key Type Air Shaft Drum.



It is widely used in printing, cutting, coating, compounding and other machineries' releasing and winding roll.




Product Description




Key strip type 3inch 6inch Air shaft adapter air drum for air expanded shaft

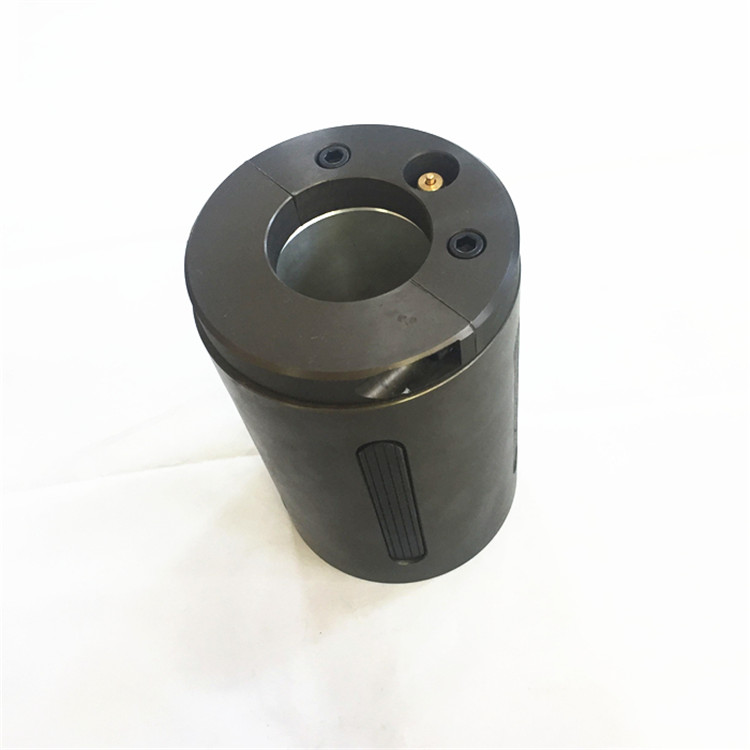

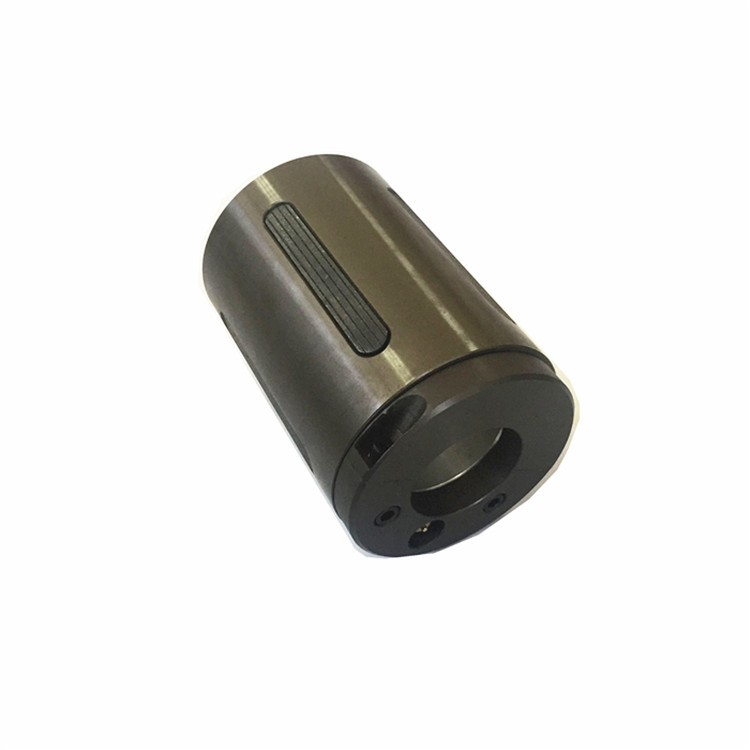

 Air shaft adapter has key type and board type, it is  also called air drum and air cover.


Air drum / Air adapter Description:

1.Application: Both Air adapter and air drum are used for 3" air shaft to reach the same effect of 6" air shaft.

2. Internal diameter of the air cover is Ø75mm, and external diameter is Ø150mm, standard length:220mm.we can also customize the length and diameter according to your needs.

3.Key strips on the air adapter:

 length: 100mm, width 8mm,stagger arrangement.

4. The external diameter can reach to Ø155-158mm when inflated and can work as a 6" air shaft

5. The air adapter body is made of high quality aluminum alloy, hard oxidized.The surface is in dark brown.The weight is light and more convenient to use.

6.The difference between air adapter and air drum

The air adapter is made of aluminum and steel.

The expansion of air drum is made from rubber, inner diameter:75mm,

outside diamter150mm,standard length:190mm-200mm


Working drawing of the Air shaft adapter:







air adapter_750k.jpg


air adapter S (19).jpg

air adapter S (23).jpg


Customize length air adapter

air adapter S (9).jpg

air adapter S (11).jpg

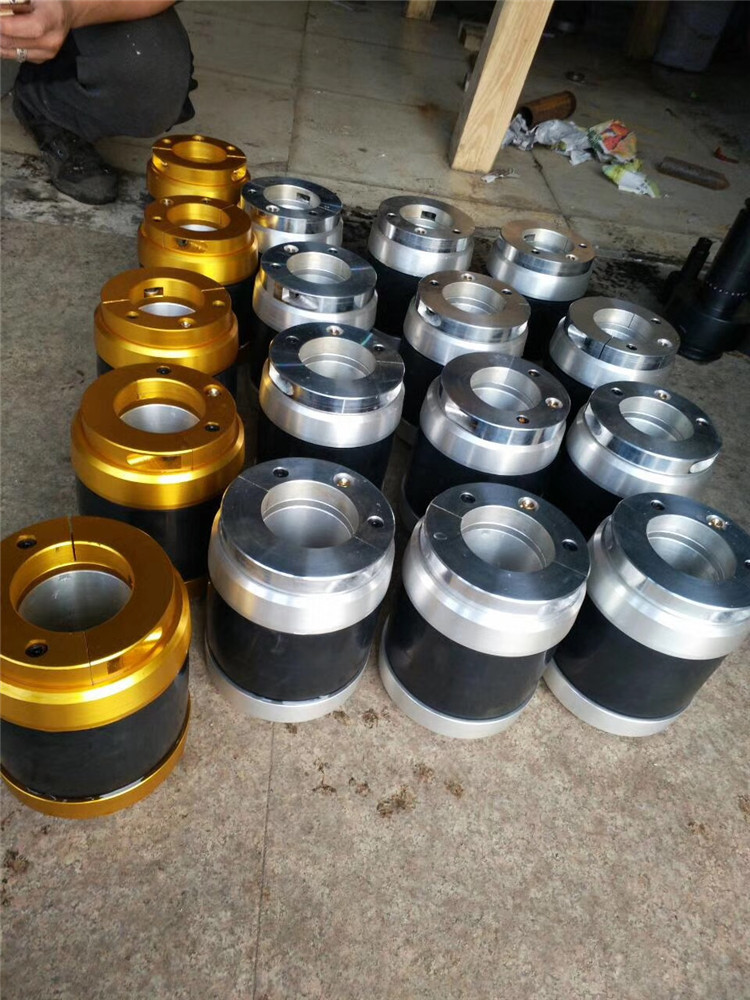

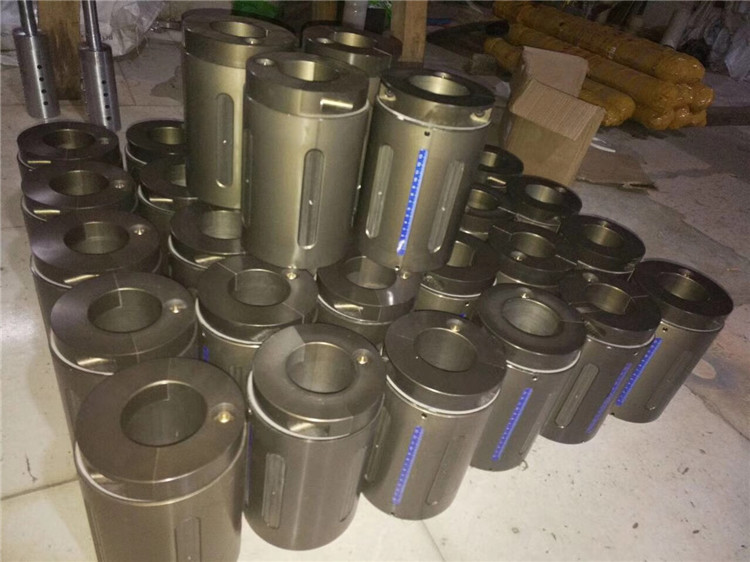

Our Stock

air adapter S (25).jpg

air adapter S (1).jpg

Company Information

公司介绍 (6).jpg

公司介绍 (3).jpg

Helen Shen

Jinan Jinchangtai Industry And Trade Co., Ltd

Add:Lushangshengjing Plaza Building B-1406, No.6 Qingfeng Road,

Jinan, Shandong, 250014, China

Tel:0086-0531-61300169

Fax:0086-0531-61300169

Mobile/wechat/Whasapp/skype:0086-18660813189

Email:sales06@jctprinting.com

http://www.jctprinting.com/


FAQ

1.How should I place the order?

For air cover(air adapter and air drum) , please send us your requirements, then i can offer you price.


2. What is your MOQ?

1 Piece.


3. What material of your air adapter is made of?

Aluminum and steel.


4. Can you produce relative product,like air gun,air valve, safety chuck and air bladder?

Yes,Sure.


5.What's the delivery time?

Around 25days after pre payment received,and it also depends on the quantity you want.


6.What’ s the terms of payment?

Usually T/T 100% in advance payment.We can also accept Western Union,paypal and credit card.
