Hydraulic semi automatic die cutting machine for packaging industry
Hydraulic semi automatic die cutting machine for packaging industry Hydraulic semi automatic die cutting machine for packaging industry Hydraulic semi automatic die cutting machine for packaging industry Hydraulic semi automatic die cutting machine for packaging industry Hydraulic semi automatic die cutting machine for packaging industry

Hydraulic semi automatic die cutting machine for packaging industry

Product ID : JCT-DCM-L010
Product Tags :
Product Attributes :

Based on the production of all kinds of labels cutting machine for many years, the machine is controlled by PLC system with sample operation, It mainly used for the die cutting process of any labels, the machine is characterized by high manufacturing accuracy, compact structure and reasonable operation.

Product Description

Hydraulic semi automatic die cutting machine for packaging industry

Introduction:

Based on the production of all kinds of labels cutting machine for many years, the machine is controlled by PLC system with sample operation, It mainly used for the die cutting process of any labels, the machine is characterized by high manufacturing accuracy, compact structure and reasonable operation.

After using by professional beer and label manufacturers, it was proved that the machine has the advantages of high working efficiency and precise die cutting precision.

Application:

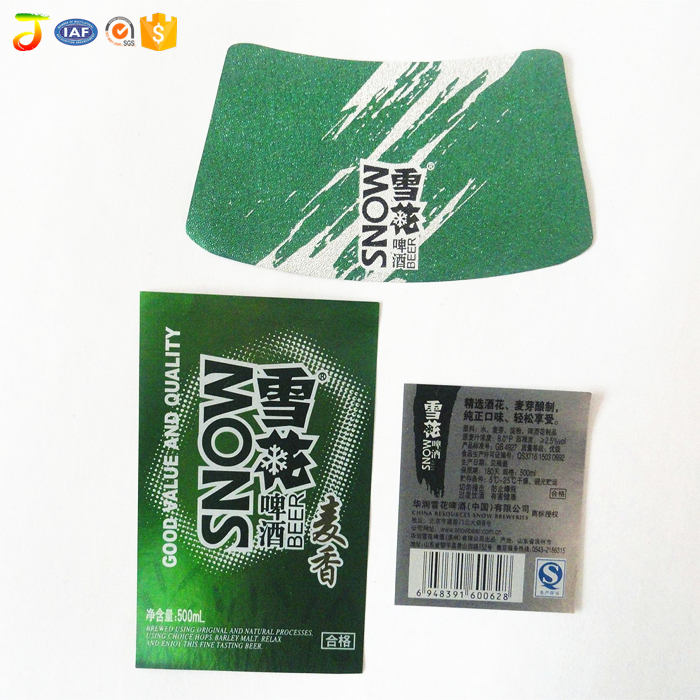

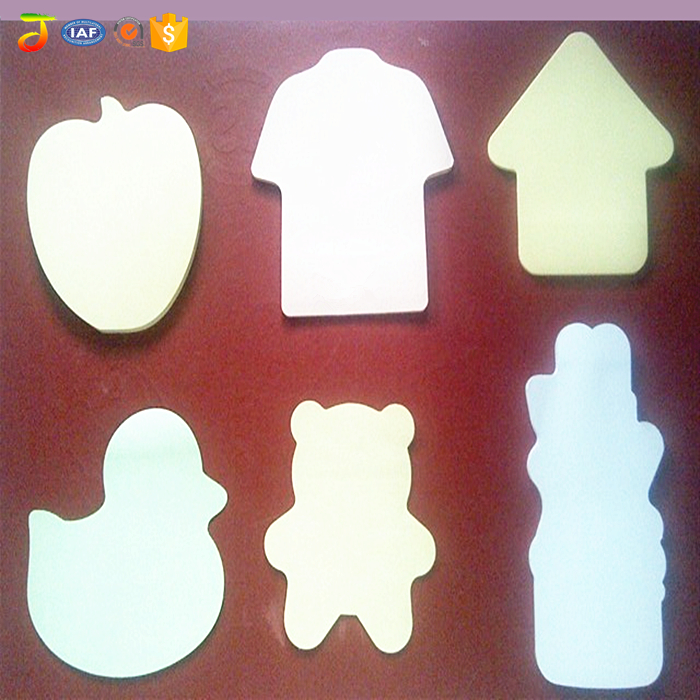

For all kinds of special-shaped die cutting,such as various types of beer labels,food and beverage labels,cards etc;Various sizes of cards,tags,envelopes,visiting cards,PVC cards,instant noodles cover,notebook,credit cards etcs.

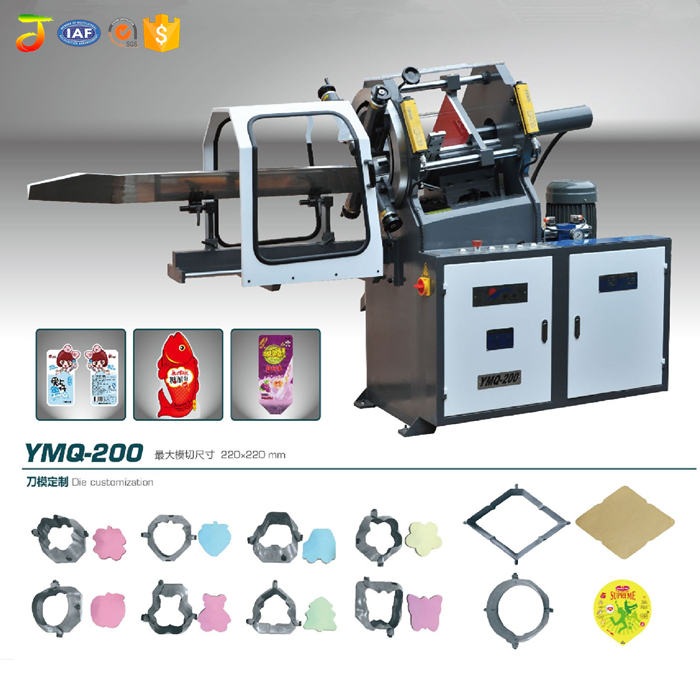

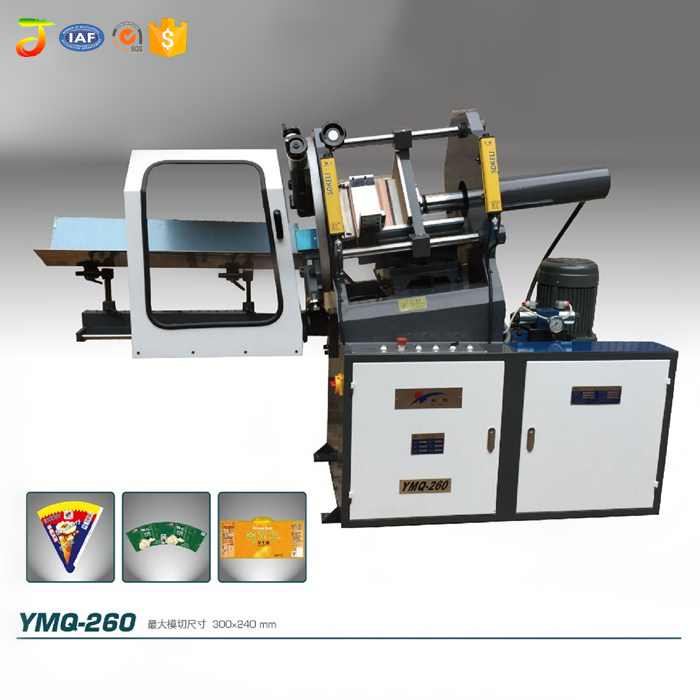

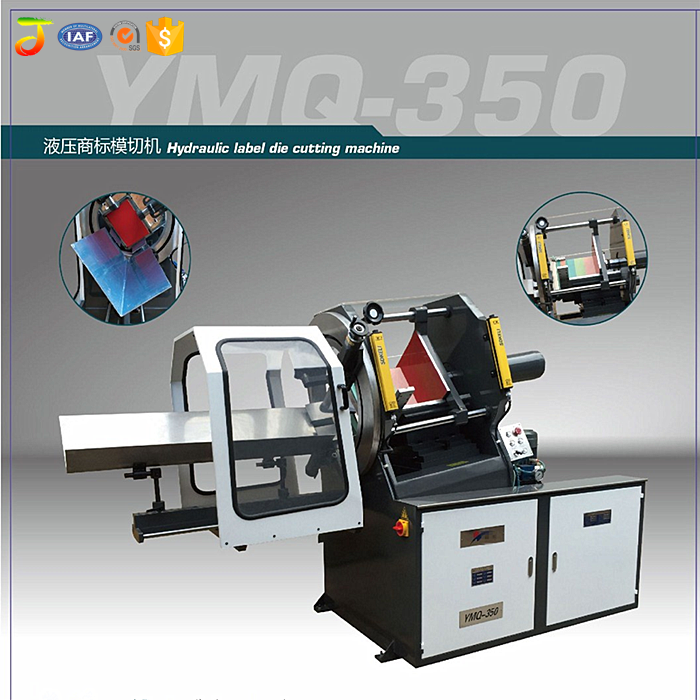

Type Number YMQ-350 YMQ-260 YMQ-200 YMQ-115  YMQ-115(New)
Voltage 7.5HP 7.5HP 5HP 3HP 3HP
Power(W) 5.6KW 5.6KW 3.75KW 2.25KW 2.25KW
Max. Die-cut size 380*300mm 300*240mm 220*220mm 140*140mm 140*140mm
Min. Die-cut size 90*90mm 65*65mm 50*50mm 20*20mm 20*20mm
Max. Die-cut height 310mm 260mm 220mm 200mm 200mm
Working speed 7Time/min 8 Time/min 10Time/min  12 Time/min  12Time/min
Die-cut pressure 12 T 8 T 5 T 3 T 3 T
Dimension(L*W*H) 2600*1250*1900 2450*1000*1800 2200*850*1650 1350*750*1500 1350*850*1500
Gross Weight 1900kg 1600kg 1000kg 660 700



Product details:

Blade adapter:

Packaging:

Company information:
