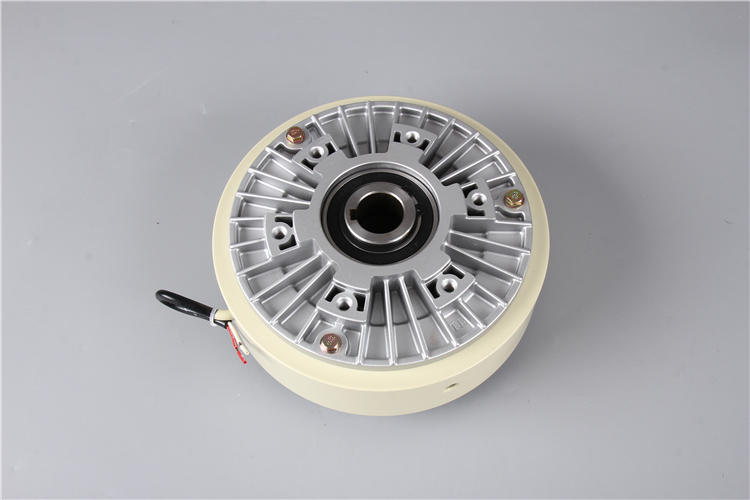

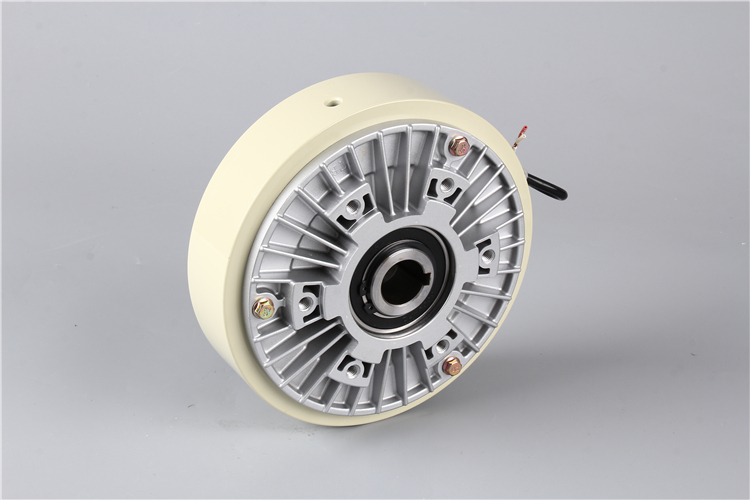

Hollow shaft magnetic powder brake for slitting machine
Hollow shaft magnetic powder brake for slitting machine  Hollow shaft magnetic powder brake for slitting machine  Hollow shaft magnetic powder brake for slitting machine  Hollow shaft magnetic powder brake for slitting machine  Hollow shaft magnetic powder brake for slitting machine

Hollow shaft magnetic powder brake for slitting machine

Product ID : JCT-ZDQ-001
Product Tags :
Product Attributes :

Magnetic powder brake can transmit torque based on electromagnetic theory and the use of magnetic powder.It has the characteristics which magnetizing current and transmit torque has a linear relationship,It has advantages of fast response,simple structure,no pollution,no noise,no shock and vibration,energy-saving and so on.

Product Description

Features of magnetic powder brake

1)The transmission torque has a linear relationship with the magnetizing current. The size of the torque can get controlled within large range. Under normal circumstance, the magnetizing current has a linear relationship with transitive torque within range of 5%-100% rated torque.
2)The friction part will generate heat inevitably or even destroyed when it keep continuous sliding. But this device has a complete cooling set, it will not generate a lot of heat after long time running and it has a long service life.

Application of magnetic powder brake
It is widely used in printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery,coil machinery,wire winding machines,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, steel extruders, CNC lathes, specialized machinery and so on.



Models and specifications of magnetic powder brake

1)cellular type magnetic powder brake

Modle

Torque(N.m)

Current(A)

 Votage(V)

Rotation speed
(RPM)

Weight(kg)

FZ 6K-1

6

0.8

24

1000

3

FZ 12K-1

12

1

24

1000

4.5

FZ 25K-1

25

1.5

24

1000

7.5

FZ 50K-1

50

1.8

24

1000

12

FZ 100K-1

100

2

24

800

20.5

FZ 200K-1

200

2.8

24

800

30

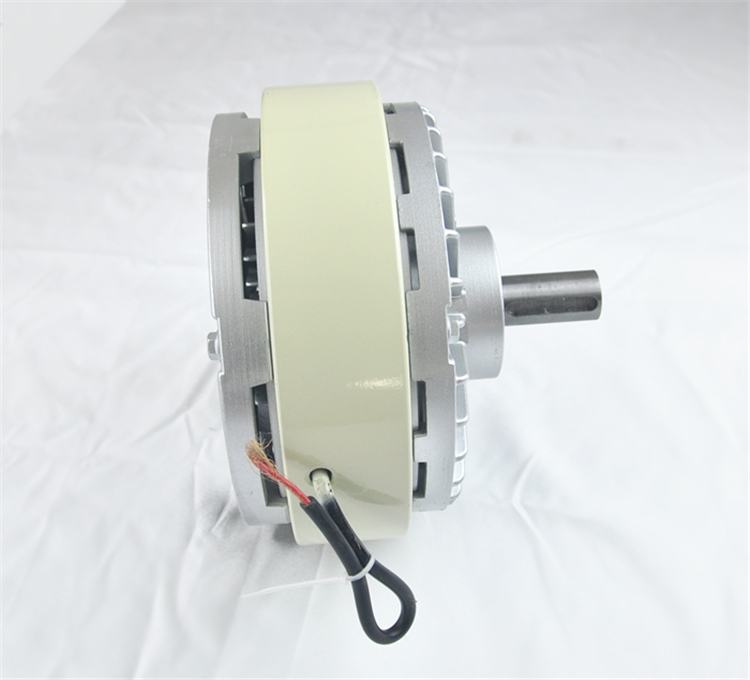

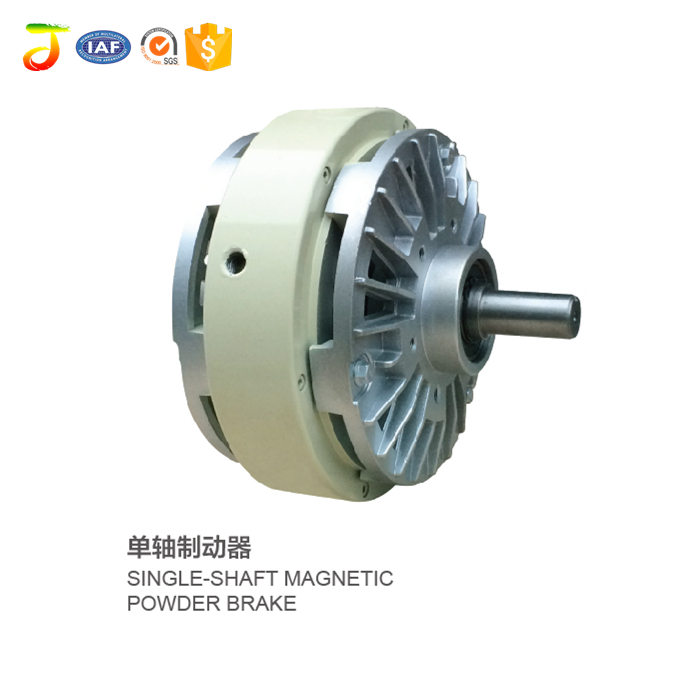

2)Singel shaft type magnetic powder brake

Modle

Torque(N.m)

Current(A)

 Votage(V)

Rotation speed
(RPM)

Weight(kg)

FZ 6A-1

6

0.8

24

1400

3.5

FZ 12A-1

12

1

24

1400

6

FZ 25A-1

25

1.5

24

1400

8

FZ 50A-1

50

1.8

24

1400

14

FZ 100A-1

100

2

24

1000

28

FZ 200A-1

200

2.5

24

1000

50

FZ 400A-1

400

3

24

1000

75

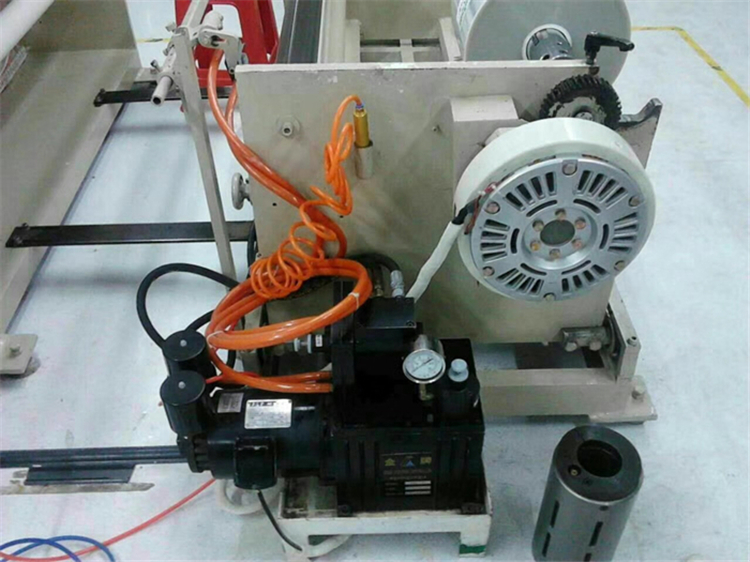

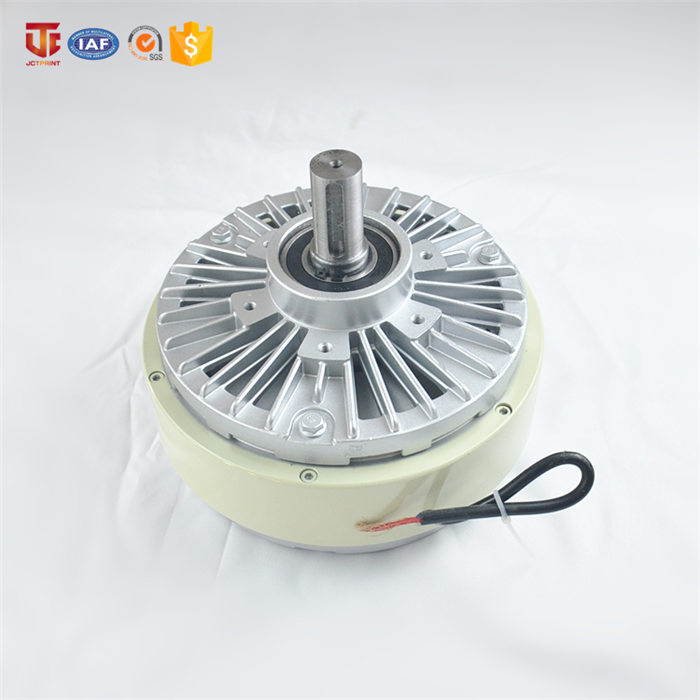

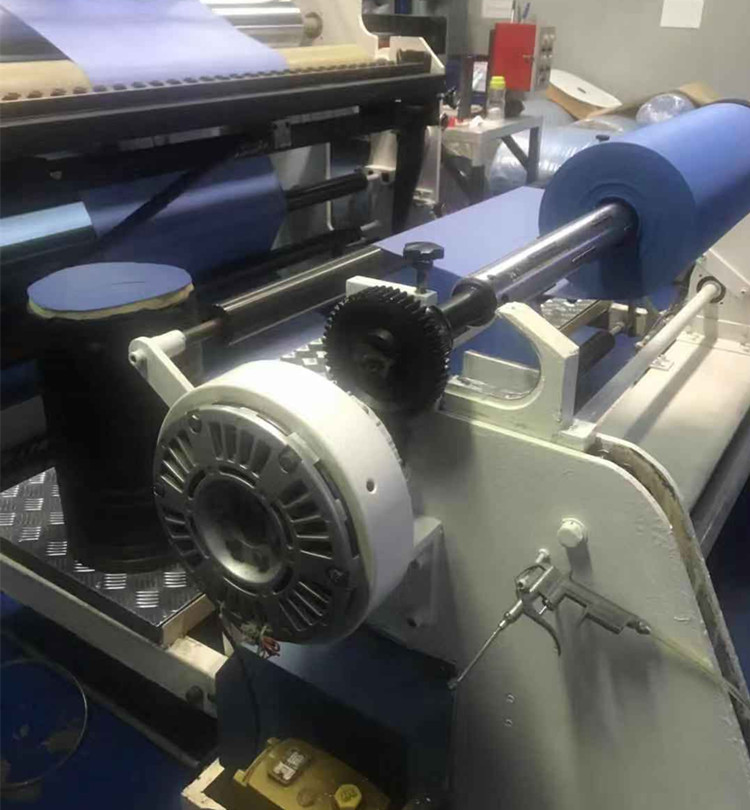

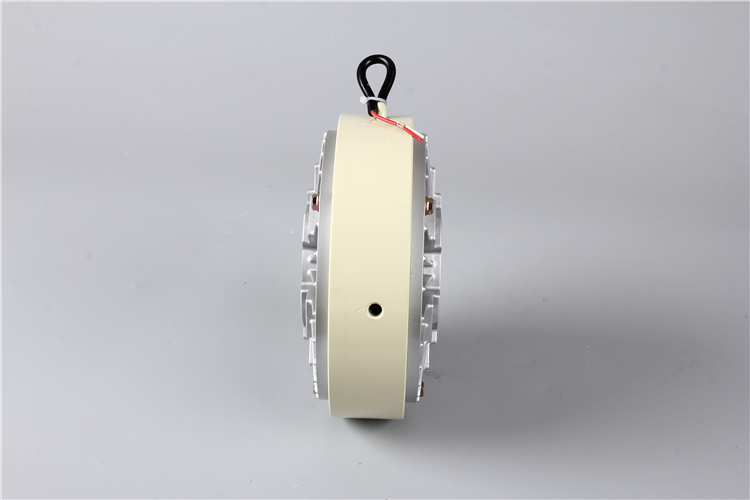

Product pictures:

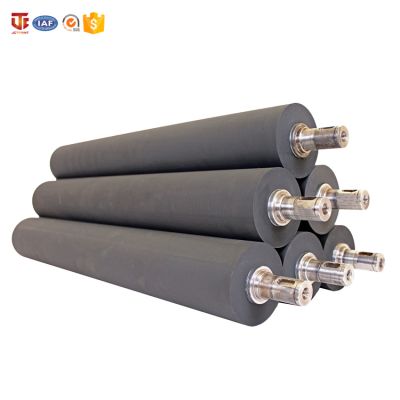

Our main products:
