High quality aluminum air shaft for film extruder
High quality aluminum air shaft for film extruder High quality aluminum air shaft for film extruder High quality aluminum air shaft for film extruder High quality aluminum air shaft for film extruder High quality aluminum air shaft for film extruder

High quality aluminum air shaft for film extruder

Product ID : K056
Product Tags :
Product Attributes :

High quality aluminum air shaft for film extruder

Material:stainless steel

Package:Fumigation wooden case, sea worthy packaging

Payment:L/C.T/T,Western Union,MoneyGram

Product Description




High quality aluminum air shaft for film extruder



Product Description

 1. Features of air shaft

1. Inflatable operation time is short

2. Paper tube placed simple

3. Heavy loading

4. High economic efficiency

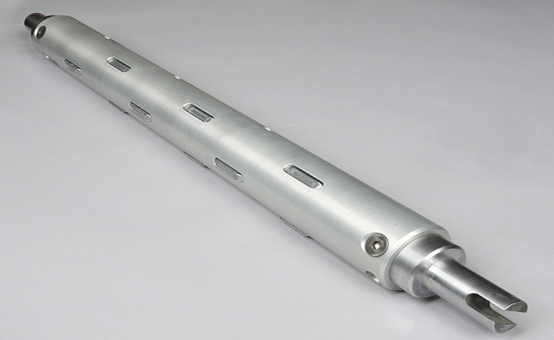

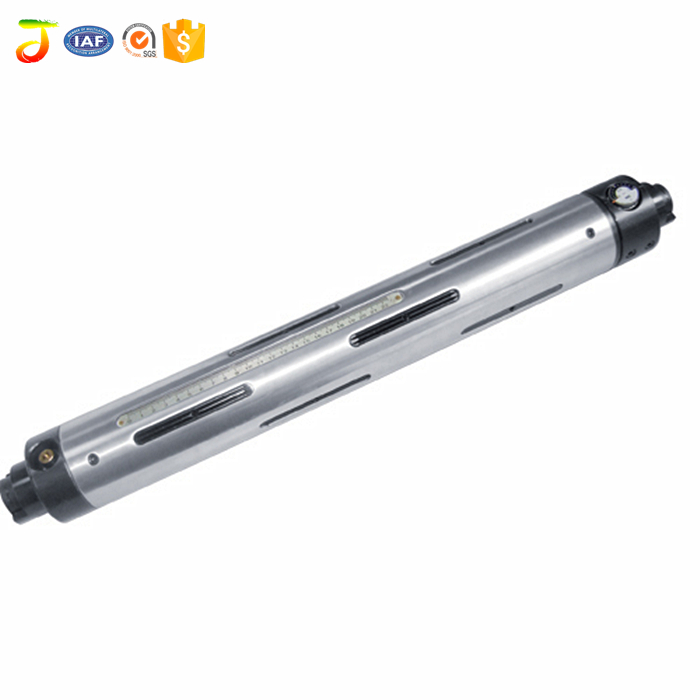

Lug Type Air Shaft181_.jpg



2.Specification of air shaft



Type

Material

Spec.

Unaerated diameter

(ømm)

Inflated diameter

(ømm)

Applicable volume tube

inner diameter

(ømm)

Key strip/Lug/Leaf Type





No.45 steel/ Aluminum









1″

24.8

24.8-28

25-26

1.5″

37

40-42

38-38.5

2″

49

52-54

50-51

3″

74-75

80-82

75.5-78

4″

99-100

104-106

101-102

5″

125

130-133

126-128

6″

150

154-156

151-153

8″

200

206-264

202-204

10″

250

260-264

 252-256

12″

 300 308-310 302-305





Application

 Air shaft application in all industries

IndustryName
Air shaft for printing industry

Flexo printing machine

Offset printing machine

Gravure printing machine

Air shaft for cutting industryCutting machine
Air shaft for slitting industrySlitting machine
Air shaft for coating industryCoating machine
Air shaft for laminating industryLaminating machine

Air shaft for bag making industry

Bag making machine
Advantages

Advantages of air shaft

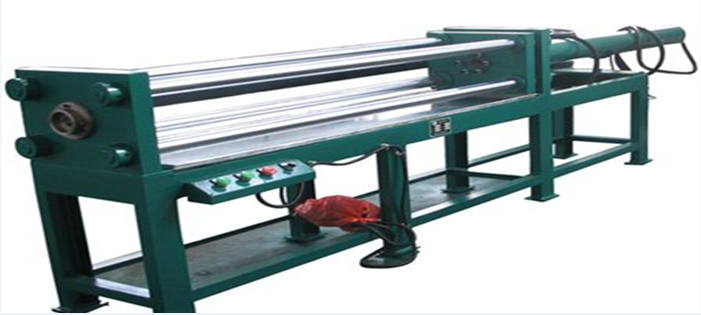

1. Adoping high power press machine to realize interference fit

We are using a high power press machine which can produce 80T thrust to realize all the combination of spindle head and steel tube for the air shafts. Light type air shaft is with 0.03mm interference fit.Heavy type air shaft is with 0.06mm interference fit.While many factories knock it in with a big hammer,no quality and accuracy.




2. Adopting  hi-precision cold-drawn steel tube as the shaft body

We adopt  hi-precision cold-drawn steel tube as the shaft body.The thickness of this kind of tube is uniform so when the rubber balloon inside is inflated ,all key strips will stick out at same height .And it will  greatly weaken centrifugal force of the whole air shaft when it is rotating and will keep a dynamic balance.

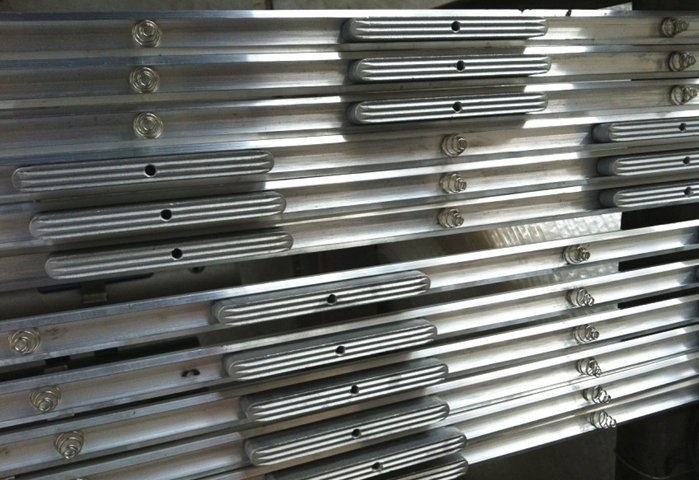

3. Adopting whole long key bar and pagoda springs for key type air shafts

We use the whole long key bar to form a good protective ring around the air shaft air chamber ,and we adopt the pagoda springs which can bear 300000 compression spring .The key bar is made of aluminum alloy. It is light in weight and suitable for ordinary tubes such as paper tubes.

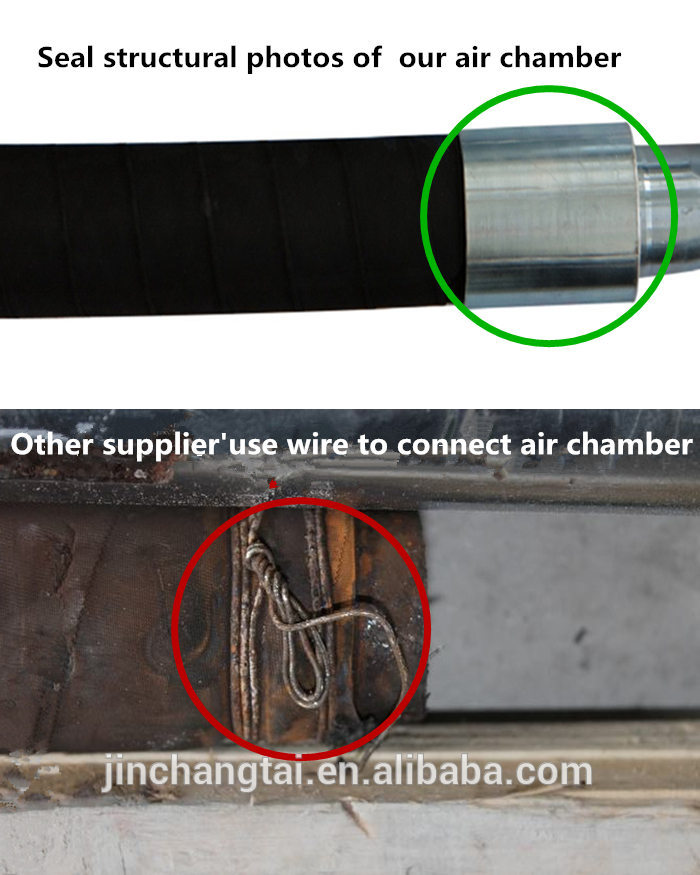

4. Adopting special equipment to connect air chamber and shaft head

The connection mode between the air chamber and the shaft head is very important process,our company are using special equipment to realize it.Outside is buckled by siderosphere directly which can realize good sealing performance and stability. Many air shafts produced by other suppliers , both ends are fastened by iron wire,this is easy to leak and is with unstable sealing performance.




5. Quality control

We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each shaft  is qualified.

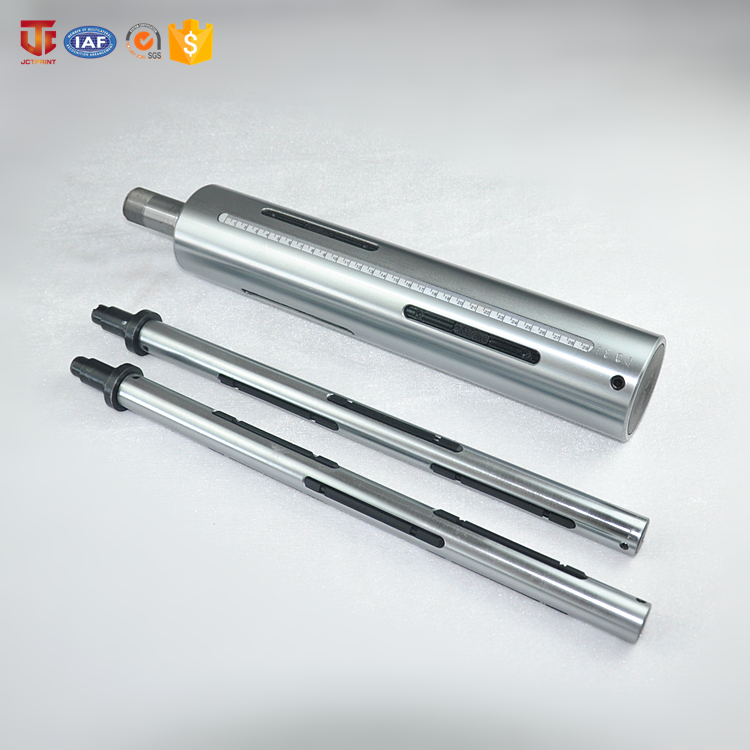

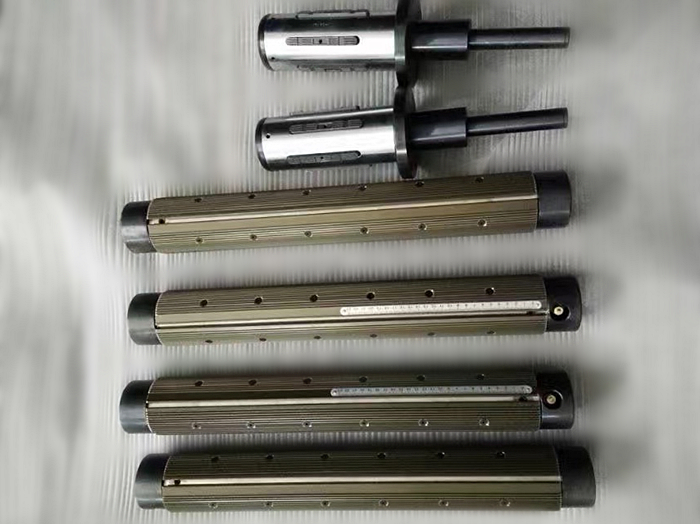

air expanding shaft.jpg



6.Packaging

Our air shafts are usually packaged by standard wooden box,plywood wooden box and carton,also can be packaged as customer's requirement.
