Gravure printing cylinder for plastic packaging printing
Gravure printing cylinder for plastic packaging printing Gravure printing cylinder for plastic packaging printing Gravure printing cylinder for plastic packaging printing Gravure printing cylinder for plastic packaging printing Gravure printing cylinder for plastic packaging printing

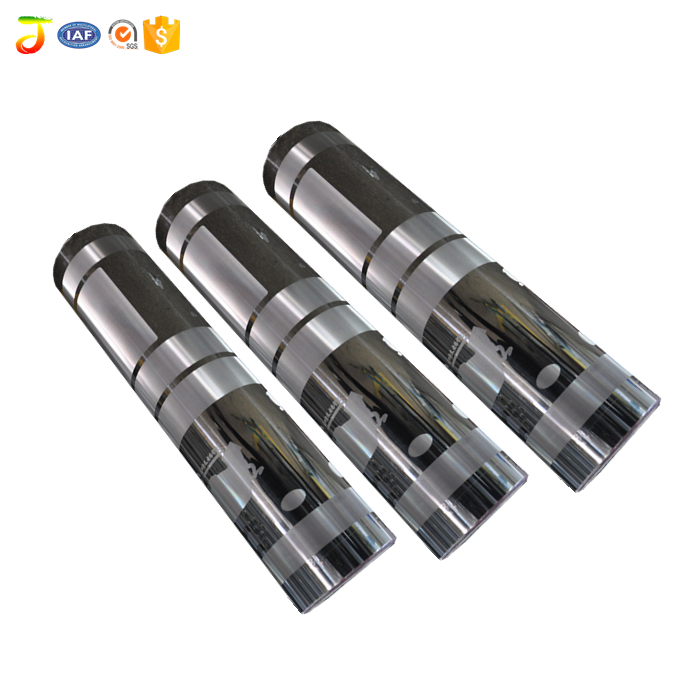

Gravure printing cylinder for plastic packaging printing

Product ID : Z004
Product Tags :
Product Attributes :

High quality gravure printing cylinder for Plastic packaging printing

Length50-8200mm
Diameter100mm-400mm
CharacteristicDurable
other namerotogravure printing roller
Printing materialPlastic, metallized paper, aluminum foil or wood grain
Surface Hardness≥HRC50,with strong corrosion resistance
Concentricity0-15 microns
MOQ1pcs
Temperature difference≤±1°C


Product Description

.jpg

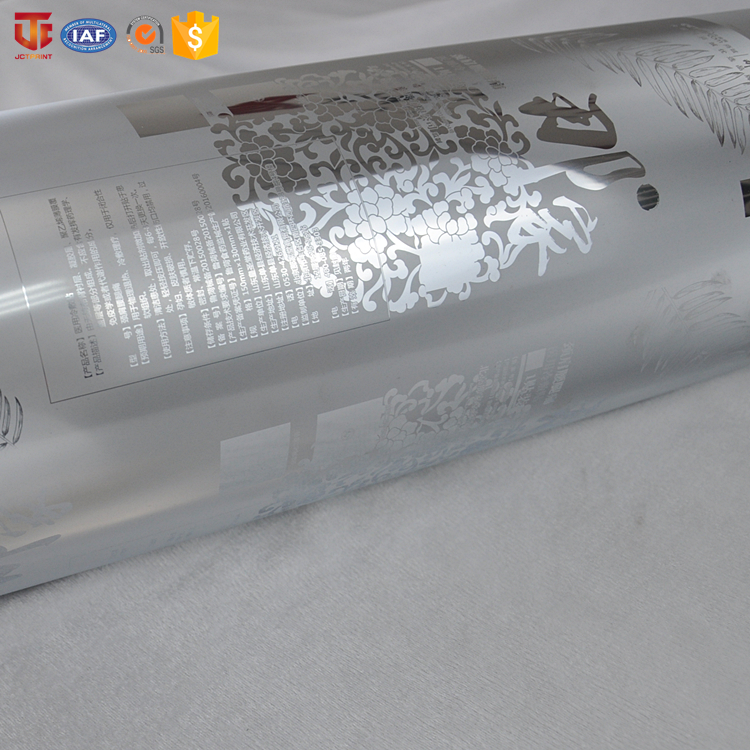

Gravure Printing Cylinder for Plastic Packaging Printing

Product Description

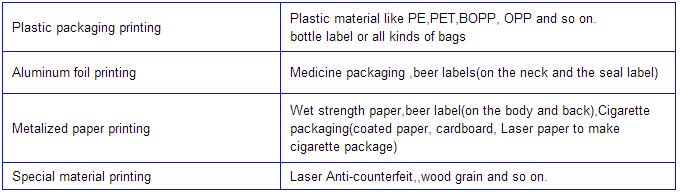

1.Application


.jpg


2.Process of gravure printing cylinders

→Image design and graphic design after receive customer’s requirement

→Mechanical treatment

→Copper plating

→Electric carving

→Chroming

→Printing sample making

→Exfactory inspection

→Packaging and delivery

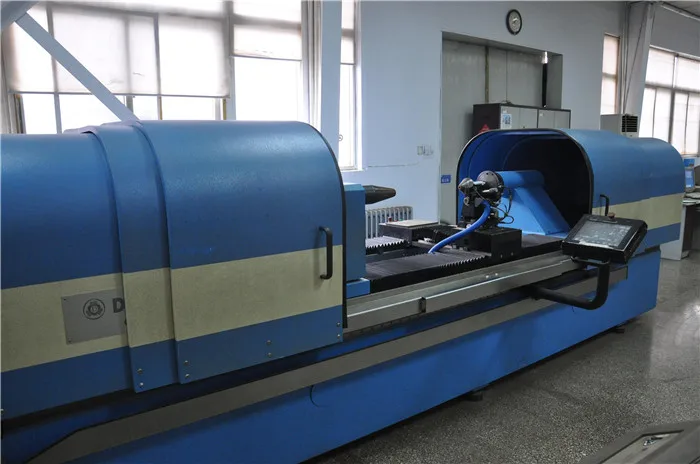

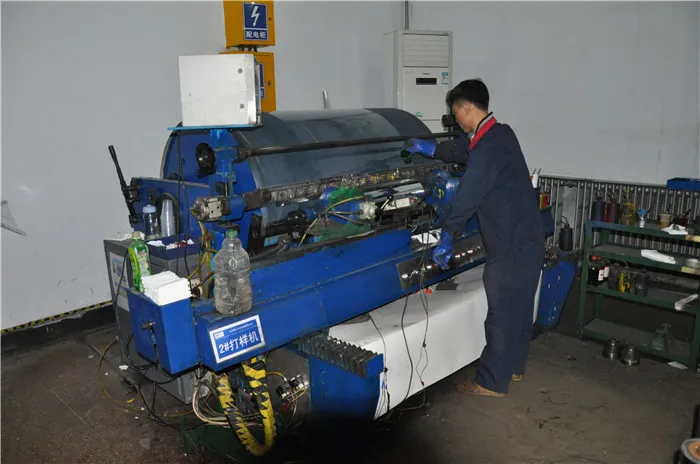

Electric carving workshop.jpg

3. Features

A.Circumference of the cylinder: 100-1500mm

  Width of the cylinder: 50-8200mm,normally 50mm longer than the rubber roller on the machine.

B.Precision on the cylinder production

Surface Hardness

≥HRC50,with strong corrosion resistance

Roughness

≥ Ra0.16

Temperature difference

≤±1°C

Thermal deformation

≤0.01mm

Concentricity

0-15microns

Straightness

≤0.2mm

Cylindricity

≤0.2mm



 4.Advantages of our cylinders

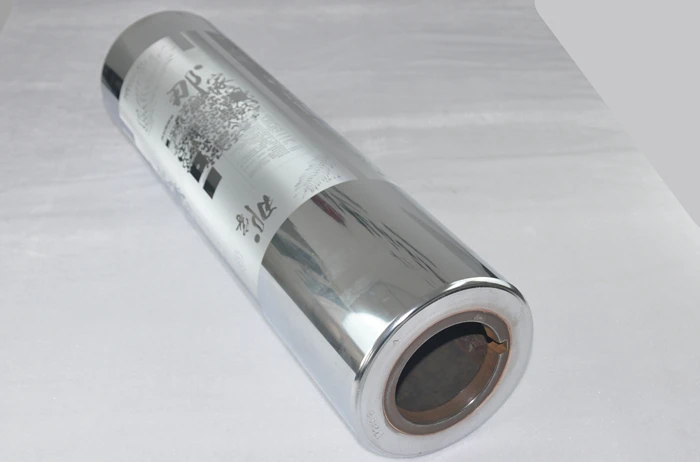

A. High-quality materials for base roller:

We adopt 45# seamless steel tube as the base roller,which have enough stiffness to make sure the bending deflection is not over the allowable value under heavy pressure.



.jpg


BDynamic balance test twice

We will do dynamic balance test twice on each cylinders,the radial jumped error will be less than±0.005,which will help do evenly distribution of the inks on the printing material.



C. Heating treatment process

This process will increased hardness and to prevent the cylinder from deformation and will assure the geometric accuracy and long service life.


D. Packaging

We use plywood cases and wollen blanket to protect the cylinders.And we will also smear anti-rust oil on the cylinder surface which will help prevent surface oxidizing and rusting under moisture.



5.Why choose us?

1)We have over 20 years experience to produce cylinders.

2)We have the professional design teams to serve customers,surface and reverse printing available.

3)We have the strict quality system to make sure the quality of every process.

4)We can assure fast time of delivery---7-10 days after payment and color separation file confirmed.

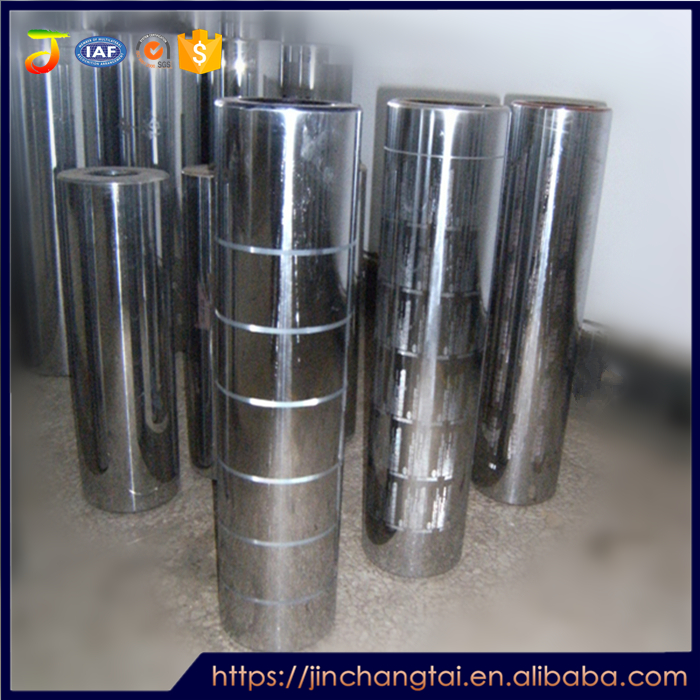

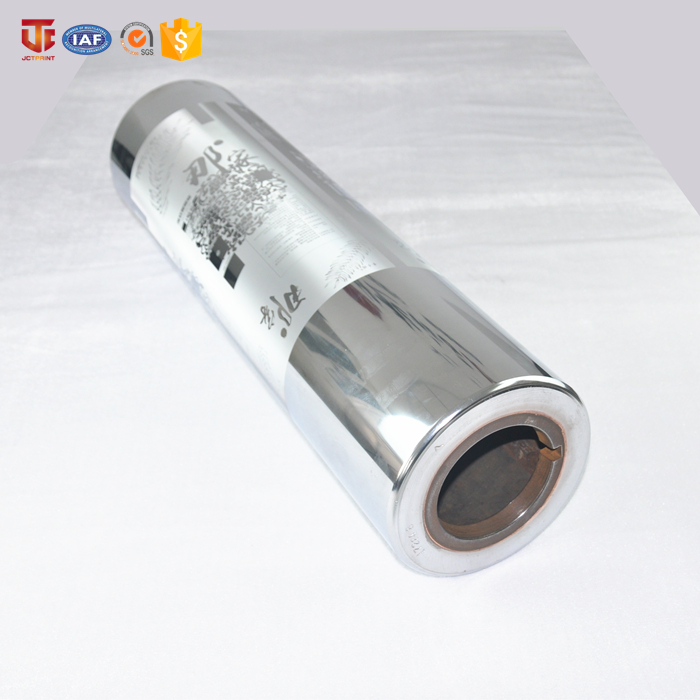

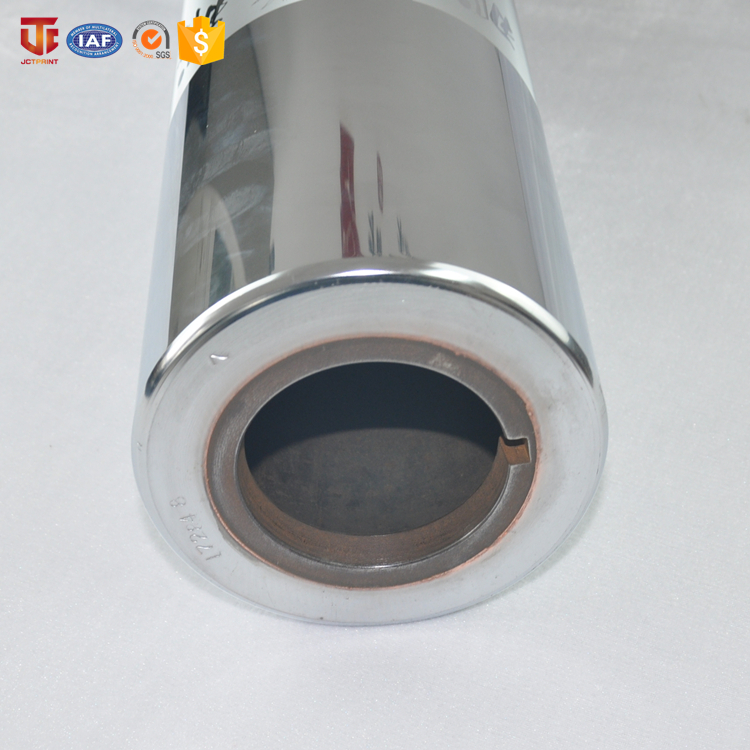

Product Pictures




Work shop

 DSCF3960_.jpgElectric .jpg
