Friction air shaft for paper roller
Friction air shaft for paper roller Friction air shaft for paper roller Friction air shaft for paper roller Friction air shaft for paper roller Friction air shaft for paper roller

Friction air shaft for paper roller

Product ID : K013
Product Tags :
Product Attributes :

Friction air shaft for paper roller

Type:FRICTION type air shaft

Diameter: 1 inch, 2 inch, 3 inch, 6 inch

requirement:drawing specification from customer


Product Description

Friction air shaft for paper roller



Product Description

 friction air shaft  for paper roller  5.jpg

 1.Description

Differential shaft applied mainly to wind shaft, or unwind shaft in special occasions.

The body is made from chrome-plate steel or hard anodized aluminum. The friction plate can be made from polyurethane, polyethylene, or rubber to max tension required.

To meet our customers’ special requirements, according to the drawing, we can make steel shaft head with different sizes.

2.Application

A.Widely uesd for  all kinds of Machines
It is used for slitting machine,coating machine,cutting machine,printing machine,compounding machine,paper making machine,bag makeing machine, embossing machine and so on .It can greatly improve the working efficiency and the quality of products.
B.It also used for Material
Differential air shaft has been widely used in plastic film including electronic, capacitor, battery film, plastic wrap, packaging, composite film, metal foil such as copper foil and aluminum foil, paper and pvc sheet.

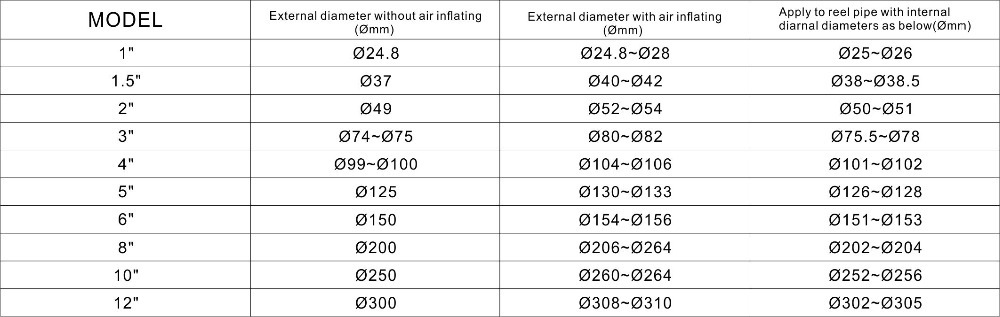

 3.Specification

friction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller 1.jpg









friction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller HT1CdY3FP0aXXagOFbXl.jpg



4.Our air shaft friction Feature

  Our differential air shaft with slipping friction can ensure the highest winding quality, and by keeping proper tension on all rolls throughout the winding operation, materials will not show any problem.

5.Working principle

It works under the theory that friction rings slip constantly in center of air shaft, and to keep same tension, some rings slip faster than others. So tension of each roll can be controlled accurately, and permanent tension can also be gained to guarantee the quality of roll.

According to different roll diameters, to control air pressure of air bag and to guarantee tension, a constant air pressure source kept by rotary joint is required.

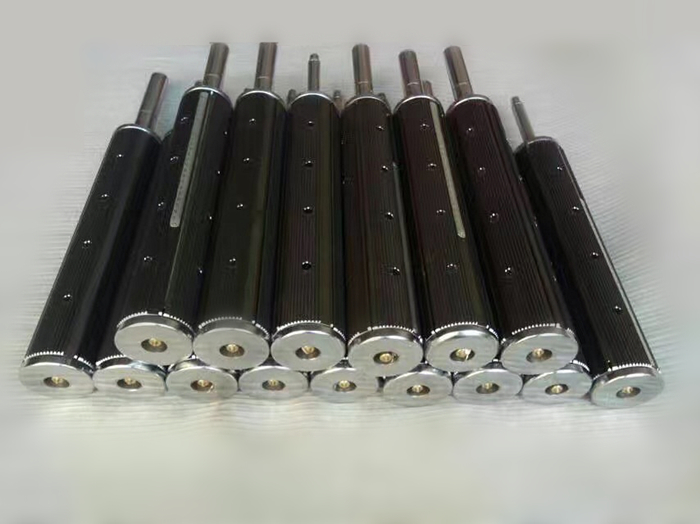

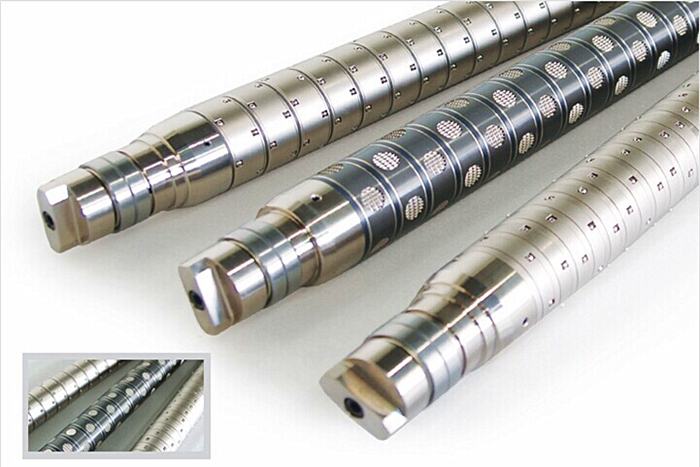

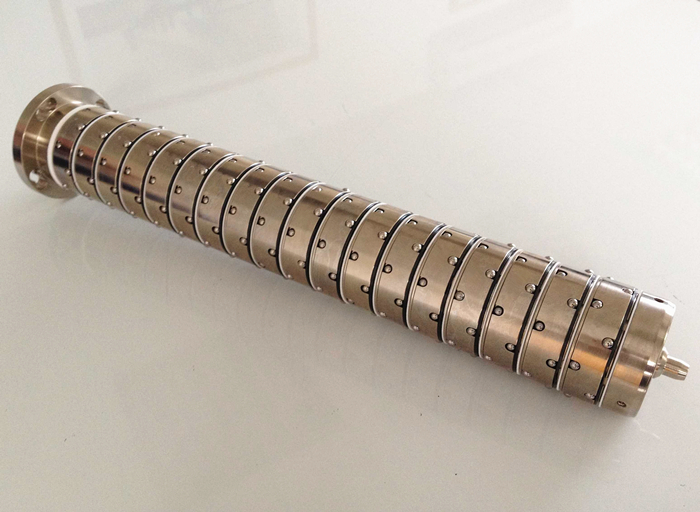

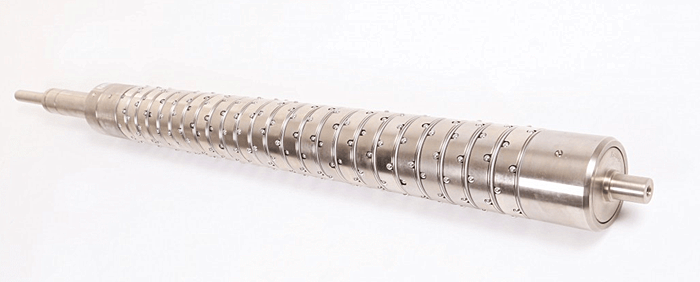

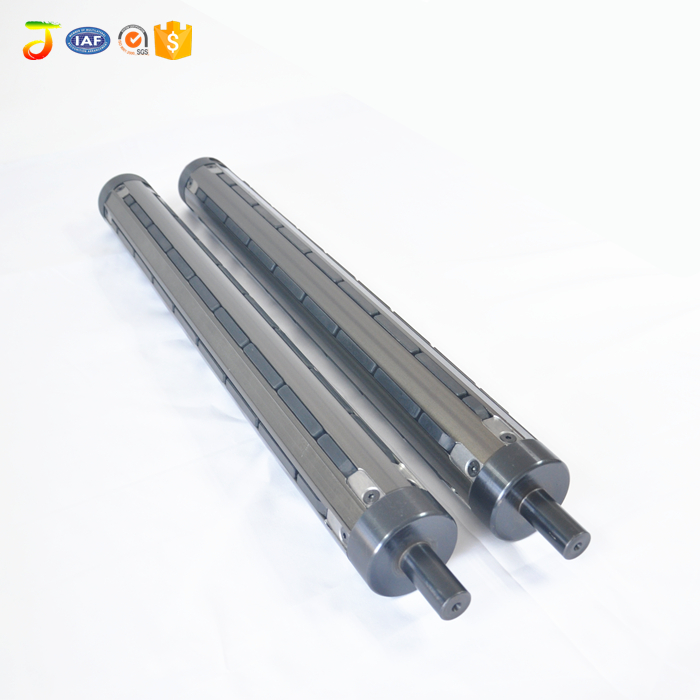

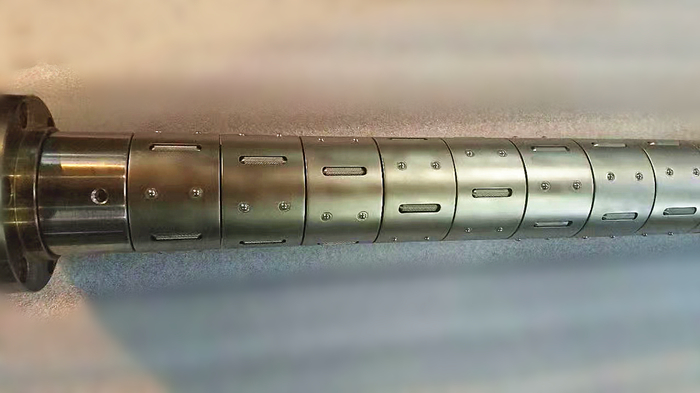

Product picture

 friction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller 3.jpgfriction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller 4.png





 friction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller 66_.jpgfriction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller 9.jpg

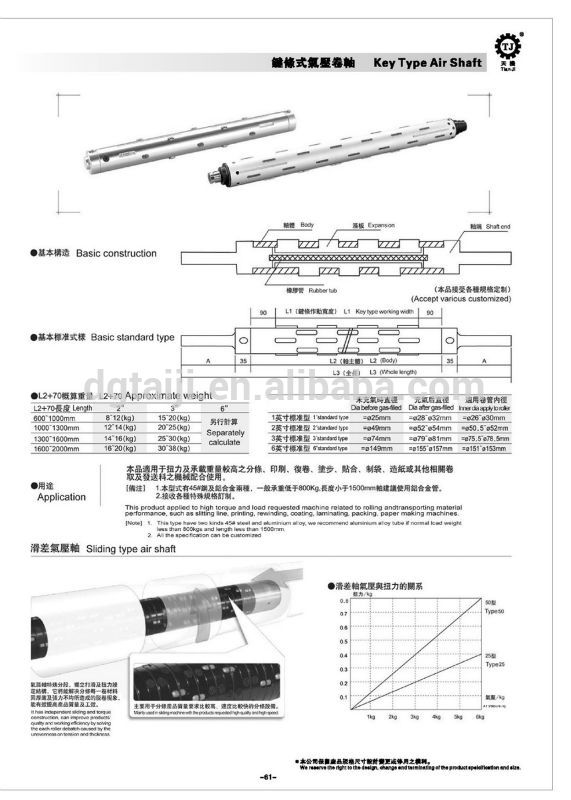

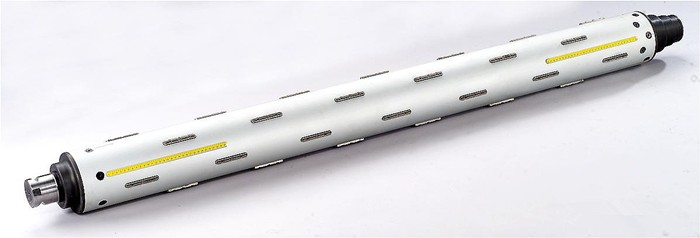

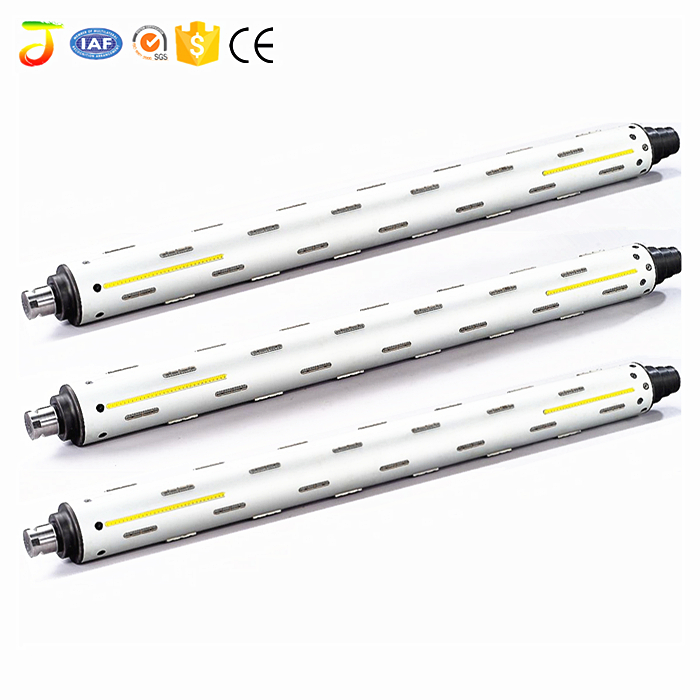

 key type air shaft:



friction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller Winding and unwinding air shaft for printing machine  winding & unwinding air shaft for printing machine manufacture printer  Lug Type Air Shaft181_









Tile type air shaft

 friction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller 1.png

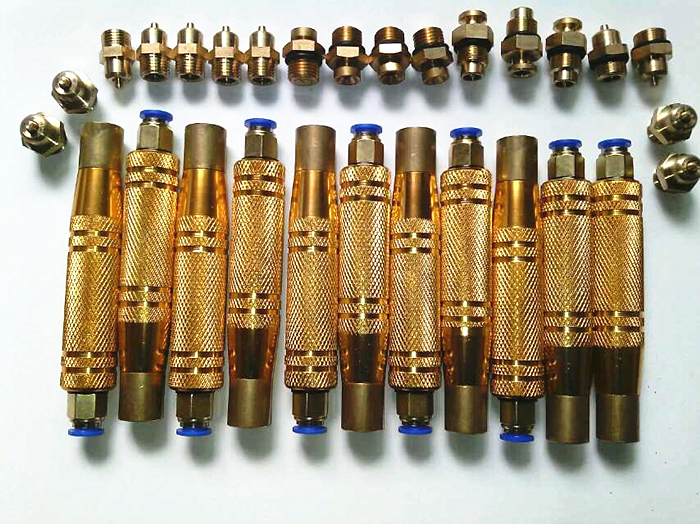

Spare parts of air shaft

 friction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller IMG_1877_

Company Information



friction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller 2

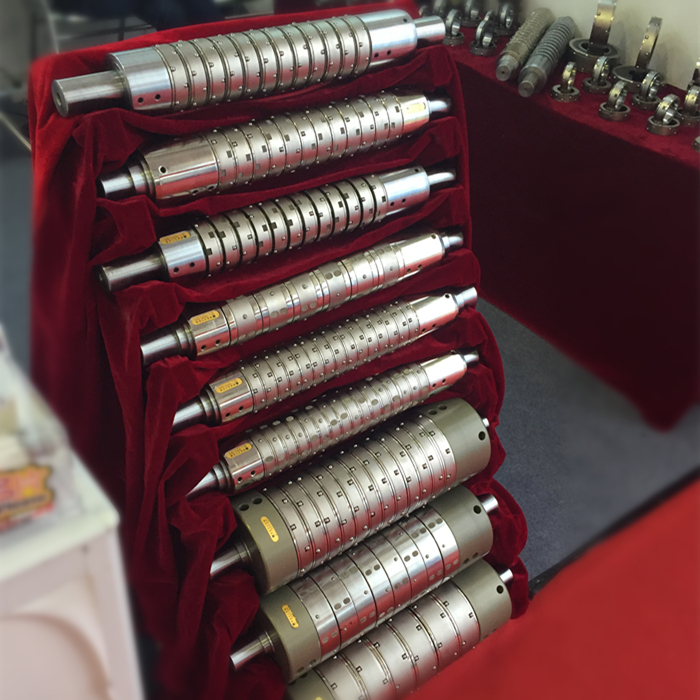

pringting exhibition



friction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller 3

Packaging & Shipping

 friction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller 1113friction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller 212684_

friction air shaft  for paper roller  2017 hot selling air friction shaft for paper roller 6





FAQ



1.   How should I place the order?



For air shaft , please send us your drawing, or let us know your request.



2.What is your MOQ?



1 Piece.



3.What material of your shaft is made of?



45# steel ,aluminum.



4.Can you produce relative product,like adapter,hand shank?



Yes,Sure.
