Flexo printing machine Anilox roller cleaning machinery price
Flexo printing machine Anilox roller cleaning machinery price Flexo printing machine Anilox roller cleaning machinery price Flexo printing machine Anilox roller cleaning machinery price Flexo printing machine Anilox roller cleaning machinery price Flexo printing machine Anilox roller cleaning machinery price

Flexo printing machine Anilox roller cleaning machinery price

Product ID : JCT-QXJ-D003
Product Tags :
Product Attributes :

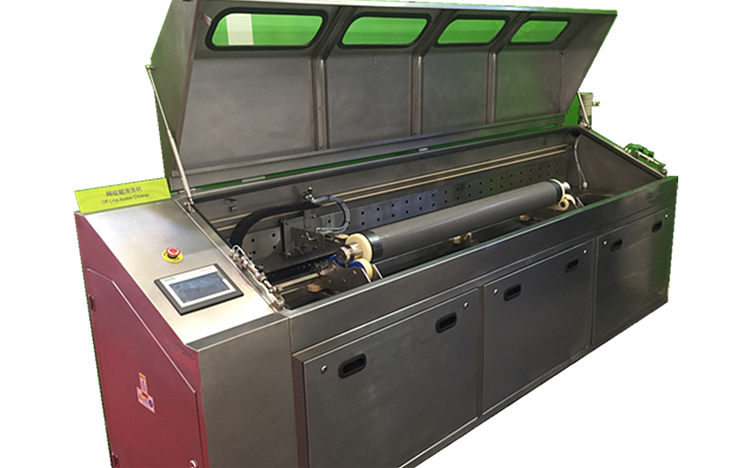

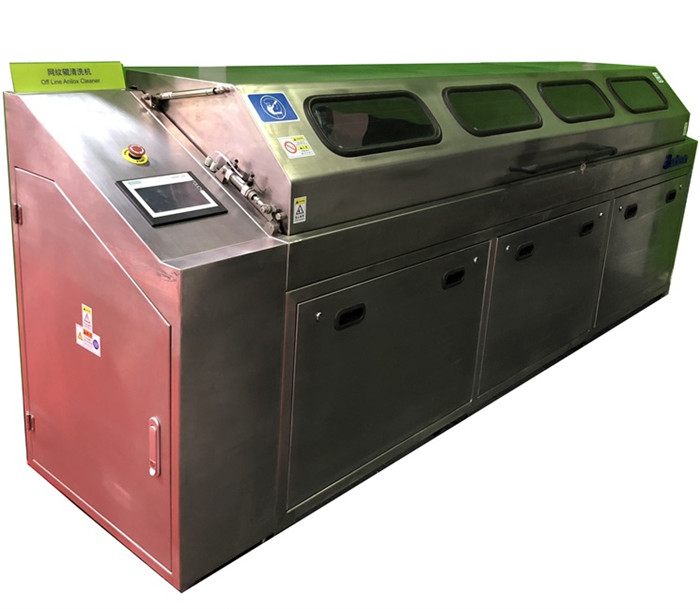

Anilox Roll Cleaner is designed for all types of aniloxes and gravure cylinders. It is cleaning system based on liquid and high pressure water .

The cleaning theory is simple, liquid soften residual ink anilox cells, and high pressure water deeply wash residuals in cells to restore anilox rolls completely.

Product Description



Flexo printing machine Anilox roller cleaning machinery price


Product Description


1. Introduction

Anilox Roll Cleaner is designed for all types of aniloxes and gravure cylinders. It is cleaning system based on liquid and high pressure water .The cleaning theory is simple, liquid soften residual ink anilox cells, and high pressure water deeply wash residuals in cells to restore anilox rolls completely.





2. Cleaning  procedure

1. Choose anilox sizes on MENU(Initial settings, Memory function),
2. Place anilox into machine chamber, close the lid and press start,
3. Anilox rotates while liquid is sprayed on it automatically
4. Liquid is recycled to tank for re-use at the end of the wash cycle
5. High pressure water clean residuals of ink and cleaning liquid on anilox
6. Compressed air blows off water residual on anilox surface;






Technical paremeter of the anilox cleaner


 3. Specifications

 Anilox Water Wash Machine AC2100WW  AC2600WW
 Max Length of the machine 2100mm/83 inch  2600mm/102 inch
 Max Cleaning Length  1700mm/86 inch  2200mm/86 inch
 Max Roll Diameter  300mm/11.8 inch  300mm/11.8 inch
 Number of Rolls  1(2.3.4,)  1(2)
 Control System  PLC  PLC
 Max Roll Weight  250kg 400kg
 Power Supply  11kw /AC380-420V50/6Ohz  11kw/AC380-420V/506Ohz
 Compressed Air  7 bar/0. 6mpa, 350 L/min  7 bar/0. 6mpa, 350u/min
 Water Supply  Running water/1/2-3/4 inch  Running water/1/2-3/6 inch
 Machine Dimensions  2810mm X 880mmx 1250mm  3310mm X 880mm X 1250mm
 Machine Weight(Approx) 480kg 530kg


4. Application


Anilox Roll Cleaner is especially efficient to aniloxes in high screen lines or hard to clean. The cleaning process is gentle and quick without any harm to aniloxes. Aniloxes can be used immediately after cleaning. Meanwhile guarantee a longer life of aniloxes


Anilox Roll Cleaner is capable to keep your aniloxes totally clean, provide ink transfer or coating volume, and guarantee fine printing or coating.


Feature and advantage


1). The ink cell of ceramic anilox roller is easier to be blocking by printing ink, plate, double sides adhesive tape or others after a long time printing, then it will affect the printing quality and the anilox roller normal use.

2). Anilox Roll Cleaner is especially efficient to aniloxes in high screen lines or hard to clean. The cleaning process is gentle and quick without any harm to aniloxes. Aniloxes can be used immediately after cleaning. Meanwhile guarantee a longer life of aniloxes

3). Anilox Roll Cleaner is capable to keep your aniloxes totally clean, provide ink transfer or coating volume, and guarantee fine printing or coating.

4). Anilox Roll Cleaner is humanized design, safe and reliable, easy operation. Autorun after program setting, One-touch operation. The machine can be operated by all types of staff, no need professional staff to operate.








5. Why choose us

  • Design for anilox with shaft, anilox sleeve and gravure cylinders ;

  •  Applicable for all types of ink, coating medium ;

  • Restore Anilox cells totally ;

  • Short cleaning time ;

  • Harmless to aniloxes;

  • Liquid recycling use;

  • PLC controlled touchscreen interface;

  • Memory function for multi roll specifications;

  • Total stainless steel construction.
