Flexo printing doctor blade for flexographic
Flexo printing doctor blade for flexographic Flexo printing doctor blade for flexographic Flexo printing doctor blade for flexographic Flexo printing doctor blade for flexographic Flexo printing doctor blade for flexographic

Flexo printing doctor blade for flexographic

Product ID : JCT-DB-L002
Product Tags :
Product Attributes :

Our doctor blade is made of high quality steel, the technology process is unique and high precision manufacturing, blade is thin and elastic strength and high toughness, smoothness, good special and unique, self sharpening opening to application research, or before the work without turning and grinding, which can ensure the good contact with the surface of the plate, so as to achieve the best scraping effect.

Product Description



Flexo printing doctor blade for flexographic



Product Description



Product description of doctor blade

        Our doctor blade is made of high quality steel, the technology process is unique and high precision manufacturing, blade is thin and elastic strength and high toughness, smoothness, good special and unique, self sharpening opening to application research, or before the work without turning and grinding, which can ensure the good contact with the surface of the plate, so as to achieve the best scraping effect.



Application



      This coating doctor blade is mainly used in gravure, flexo printing, also suitable for coating, color printing, embossing, metal printing, scraping, pulp industry. We can supply all the dimension according to your requirement.



Specification





Material Carbon steel, stainless steel.T10,SK4,C100,20C
Printing machine speed high speed/medium speed/low speed.
Doctor blade width 10-60mm.
Doctor blade width tolerance ±0.100mm
Lamella edge width 1.3mm
Lamella edge width tolerance ±0.025mm
Doctor blade thickness 0.15mm-1.5mm
Doctor blade thickness tolerance ±0.005mm
Lamella edge thickness 0.07mm-0.10mm
Lamella edge thickness tolerance ±0.003mm
Doctor blade hardness 1960N/mm(580HV+/-15)
Doctor blade tensile strength 1950-2150Pa
Doctor blade surface bright polished
Straightness maximum deviation 0.5mm/3.0m
Contact edge roughness Rao.10 ±0.05um.

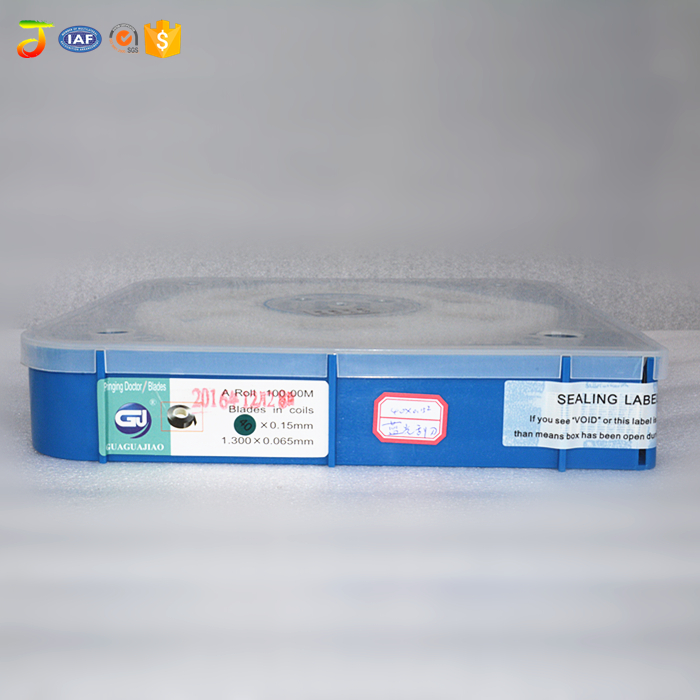

Packaging 100m/box
Features





1.Good scraping effect &high printing quality

2.Good elasticity & strong layering feeling

3.Durable &Long life





Detailed pictures

 High Quality China gravure printing flexo printing doctor blades Doctor blade 12







High Quality China gravure printing flexo printing doctor blades Doctor blade 1



High Quality China gravure printing flexo printing doctor blades Doctor blade 15



High Quality China gravure printing flexo printing doctor blades Doctor blade 2



Company Information



High Quality China gravure printing flexo printing doctor blades Doctor blade Doctor blade 2High Quality China gravure printing flexo printing doctor blades Doctor blade Doctor blade 3



Packaging & Shipping



 High Quality China gravure printing flexo printing doctor blades Doctor blade 03

 High Quality China gravure printing flexo printing doctor blades Doctor blade Doctor blade 5





Contact us

High Quality China gravure printing flexo printing doctor blades Doctor blade 6



High Quality China gravure printing flexo printing doctor blades Doctor blade FAQ





1.    When can I get the quotation?



We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.



 2.    How should I place the order?



Please show us your detailed information,like your machine speed,width and thickness of blade and other requirements if you have.





3.    What’s your MOQ basis?



1 piece or 1 set,it depends on your actual requirement.



4.    What about the lead time for production?



Honestly, it depends on the order quantity and the type of our products.





5.    What is the term of delivery?



We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
