Flexo anilox roll flexography anilox roller coated ceramic flexo printing roller for glazing
Flexo anilox roll flexography anilox roller coated ceramic flexo printing roller for glazing Flexo anilox roll flexography anilox roller coated ceramic flexo printing roller for glazing Flexo anilox roll flexography anilox roller coated ceramic flexo printing roller for glazing Flexo anilox roll flexography anilox roller coated ceramic flexo printing roller for glazing Flexo anilox roll flexography anilox roller coated ceramic flexo printing roller for glazing

Flexo anilox roll flexography anilox roller coated ceramic flexo printing roller for glazing

Product ID : JCT-WWG-S003
Product Tags :
Product Attributes :

Flexo anilox roll flexography anilox roller coated ceramic flexo printing roller for glazing

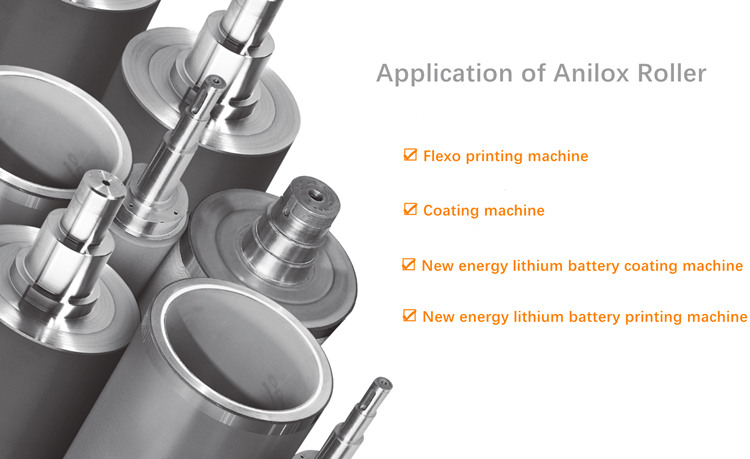

Ceramic anilox rolls are mainly used for printing, coating (coking, gluing) and glazing.


Product Description


Flexo anilox roll flexography anilox roller coated ceramic flexo printing roller for glazing


Product description


1.    Introduction of ceramic anilox roller

Ceramic anilox rolls are mainly used for printing, coating (coking, gluing) and glazing.




2. What’s the difference between metal and ceramic anilox roller?

Metal anilox rolls

Metal anilox rolls are made by mechanical extrusion or chemical etching.

The highest LPI it can be made is 300LPI.

Advantages: low cost

Disadvantages: unable to transfer ink to high-line printing plates, easy to wear.


Ceramic anilox roller

Ceramic anilox rollers use laser engraving to make cell, the highest LPI can reach

2000LPI.

Advantages: It can be suitable for high screen printing, uniform ink transfer and good wear resistance.

Disadvantages: need to be cleaned frequently



3. Feathers of ceramic anilox roller

1)Base roller: 45# steel tube or No5 series aluminum

2)Surface coating: Chrome oxide ceramic layer

3)Screen count range(LPI): 80-2000 LPI

4)Surface hardness: 1250HV-1350HV

5)Engraving angle( Screen angle): 1-89 degree

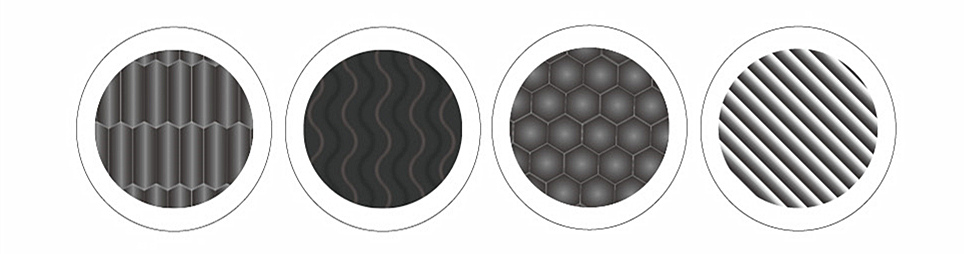

6)Cell shape :

30°honeycomb, 60°honeycomb(hexagon), 45°diamond(quadrangle,ART pattern ),curved flow(Cobra pattern), slanted(line pattern)or according to your actual requirement.

raw material.jpg

ww-s官方 (6).jpg


4.    Production process

Based roller Processing→Sandblasting Treatment→

Nickel-Chromium Alloy Coating→Chromium Oxide Ceramic Layer→

Carborundum Grinding→Carborundum Polishing→Laser Engraving→

Polishing and Cleaning


5.    Why choose us?

1) Using top quality material

Base roller: 45# seamless steel or No5 series aluminum

Surface coating: Chrome oxide ceramic

laser engraving machine.jpg

2) Advanced processing technology

Using the nanoscopic sealant to do antiseptic treatment.

Trial engraving to assure the precise delivery on the ink.

 ww-s官方 (26).jpg

3) Quality assurance

We have the quality control system during the whole production from the very beginning to the end.

we will issue the certification for our customers after the products finished .

ww-s官方 (9).jpg


4)Long service life

Our rollers can work for 8-10 years or more. But your maintance is also very important for the life of the ceramic anilox rollers.

certificate .jpg

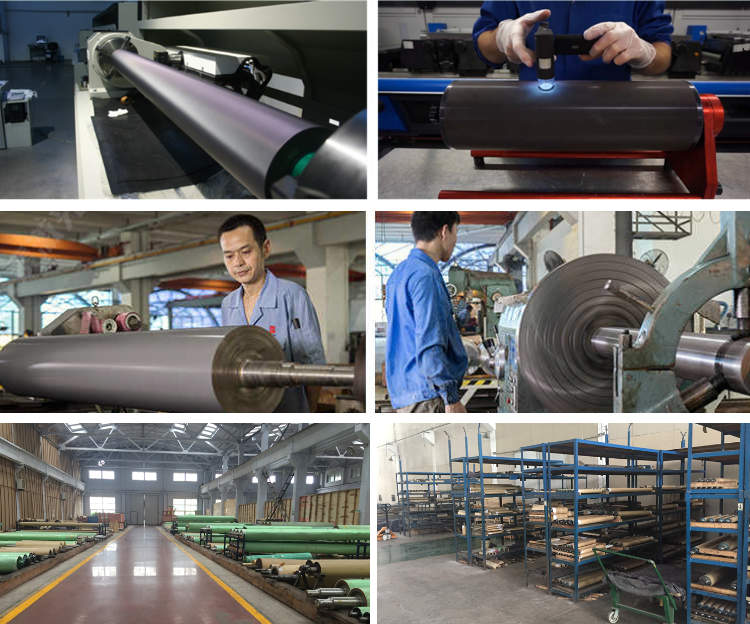

Company information


公司介绍 (6).jpg

公司介绍 (5).jpg

公司介绍 (2).jpg

公司介绍 (1).jpg


Contact us

公司介绍 (10).jpg

Helen ShenJinan Jinchangtai Industry And Trade Co., Ltd

Add:Lushangshengjing Plaza Building B-1406, No.6 Qingfeng Road,

Jinan, Shandong, 250014, China

Tel:0086-0531-61300169

Fax:0086-0531-61300169

Mobile/wechat/Whasapp/skype:0086-18660813189

Email:sales06@jctprinting.com

http://www.jctprinting.com/



FAQ


1. I don’t know the BCM of the anilox roller,what should I do?

If you don’t have special request on BCM ,we will recommend you the standard type.



2. How can I get a quotation?

Please advise the following information to our email address or add me on whatsapp,wechat and so on.

A.The drawing of the ceramic anilox roller if possible(or you can get a estimate price by telling us the total length,effective face length,diameter as the following picture.

B.LPI an BCM

C.Where do you use the ceramic anilox roller?flexo printing machine,coating machine or offset UV unit?



3.What’s your packaging of anilox roller?

We have two types of packaging wooden box and strong carton.



4.What's the delivery time?

Around35days after pre payment received,and it also depends on the quantity you want.



5.What’ s the terms of payment?

Usually T/T 100% in advance payment.We can also accept Western Union,paypal and credit card.
