Factory supply rotogravure printing cylinder for metalized paper
Factory supply rotogravure printing cylinder for metalized paper Factory supply rotogravure printing cylinder for metalized paper Factory supply rotogravure printing cylinder for metalized paper Factory supply rotogravure printing cylinder for metalized paper

Factory supply rotogravure printing cylinder for metalized paper

Product ID : GC-G001
Product Tags :
Product Description



                                                                                                                                         Factory supply rotogravure printing cylinder for metalized paper





1.Application:

A.Plastic packaging printing

   Plastic material like PE,PET,BOPP, OPP and so on.

   bottle label or all kinds of bags

B.Aluminum foil printing

   Medicine packaging ,beer labels(on the neck and the seal label)

C.Metalized paper printing

   Wet strength paper, beer label(on the body and back),Cigarette packaging(coated paper, cardboard, Laser paper to make cigarette             package)

D.Special material printing

   Laser Anti-counterfeit,,wood grain and so on.

2.Production progress

→Image design and graphic design after receive customer’s requirement

→Mechanical treatment

→Copper plating

→Electric carving

→Chroming

→Printing sample making

→Exfactory inspection

→Packaging and delivery

3. Features

A.Circumference of the cylinder: 100-1500mm

 Width of the cylinder: 50-8200mm,normally 50mm longer than the rubber roller on the machine.

B.Precision on the cylinder production



Surface Hardness

≥HRC50,with strong corrosion resistance

Roughness

≥ Ra0.16

Temperature difference

≤±1°C

Thermal deformation

≤0.01mm

Concentricity

0-15microns

Straightness

≤0.2mm

Cylindricity

≤0.2mm



4.Advantages of our cylinders

A. High-quality materials for base roller:

We adopt 45# seamless steel tube as the base roller,which have enough stiffness to make sure the bending deflection is not over the allowable value under heavy pressure.

BDynamic balance test twice

We will do dynamic balance test twice on each cylinders,the radial jumped error will be less than±0.005,which will help do evenly distribution of the inks on the printing material.

C. Heating treatment process

This process will increased hardness and to prevent the cylinder from deformation and will assure the geometric accuracy and long service life.

D. Packaging

We use plywood cases and wollen blanket to protect the cylinders.And we will also smear anti-rust oil on the cylinder surface which will help prevent surface oxidizing and rusting under moisture.

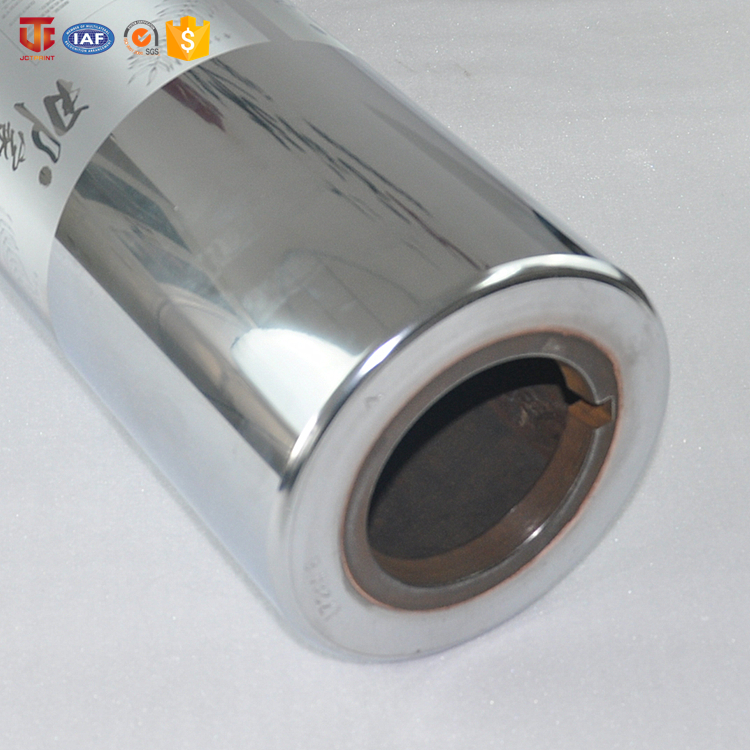

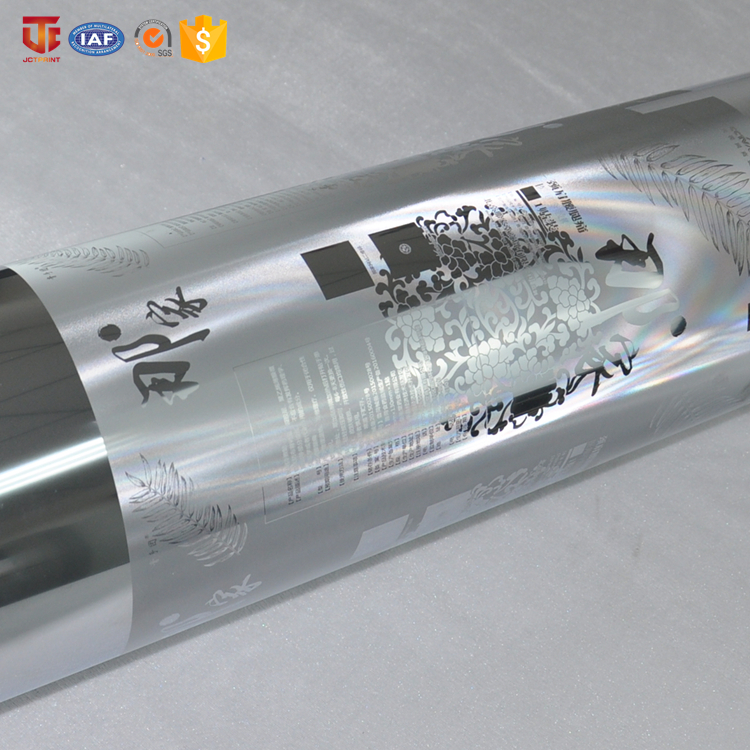

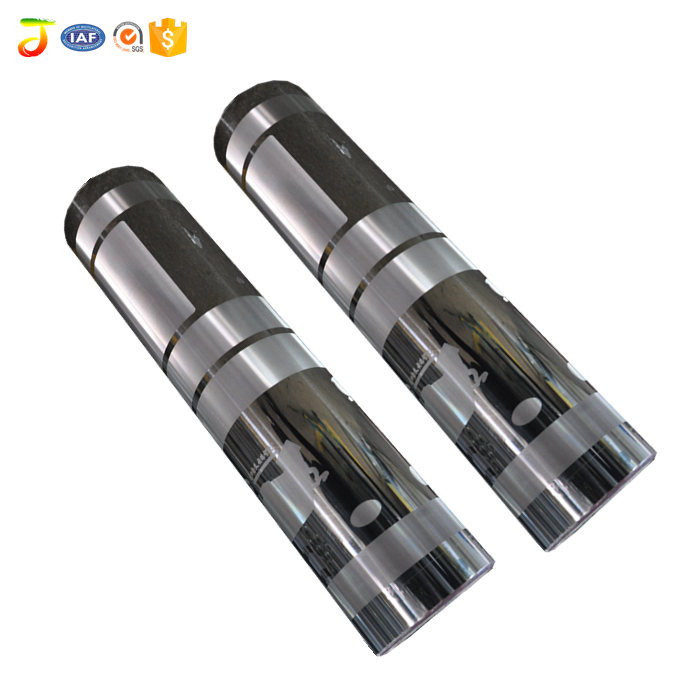

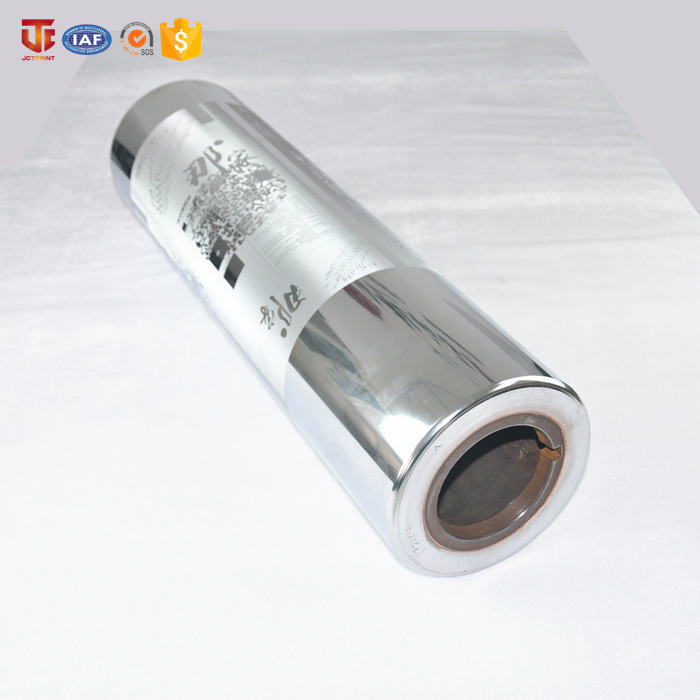

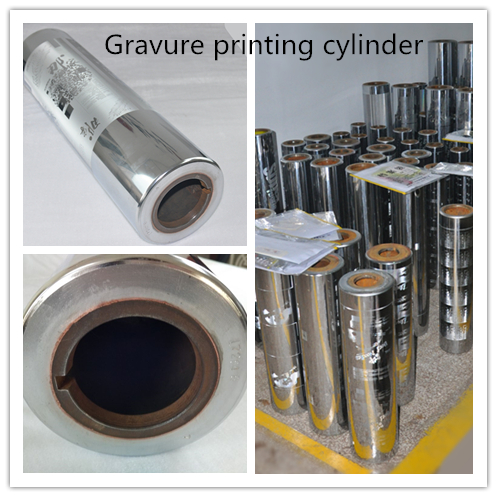

5.Product pictures:

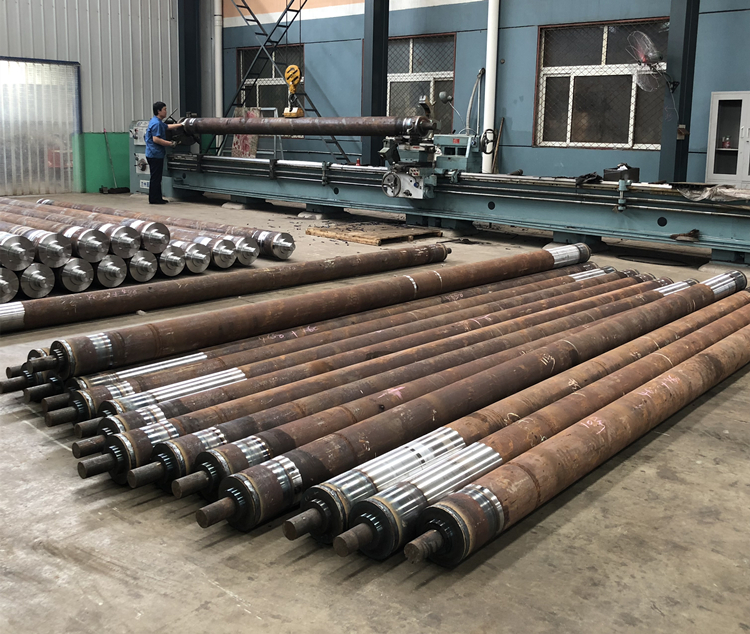

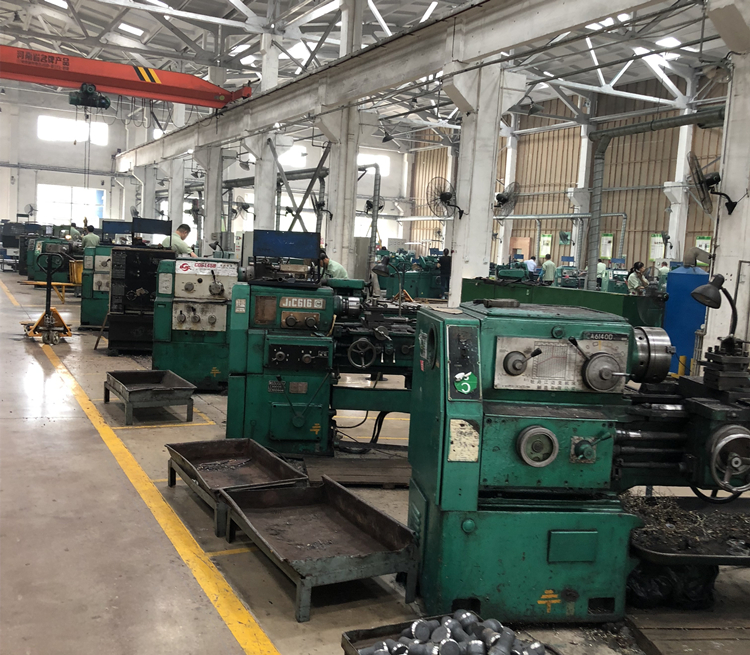

6.Company information:
