Electronic chrome gravure printing cylinder for printing aluminum foil
Electronic chrome gravure printing cylinder for printing aluminum foil Electronic chrome gravure printing cylinder for printing aluminum foil Electronic chrome gravure printing cylinder for printing aluminum foil Electronic chrome gravure printing cylinder for printing aluminum foil Electronic chrome gravure printing cylinder for printing aluminum foil

Electronic chrome gravure printing cylinder for printing aluminum foil

Product ID : JCT-PC-L005
Product Tags :
Product Description

Electronic chrome gravure printing cylinder for printing aluminum foil

    1.Application

 A.plastic packaging printing

Plastic material like PE,PET,BOPP, OPP and so on.
bottle label or all kinds of bags

B.Aluminum foil printing

Medicine packaging ,beer labels(on the neck and the seal label)

C.Metalized paper printing

Wet strength paper, beer label(on the body and back),Cigarette packaging(coated paper, cardboard, Laser paper to make cigarette package)

D.Special material printing

Laser Anti-counterfeit,,wood grain and so on.



2.Production progress

    →Image design and graphic design after receive customer’s requirement

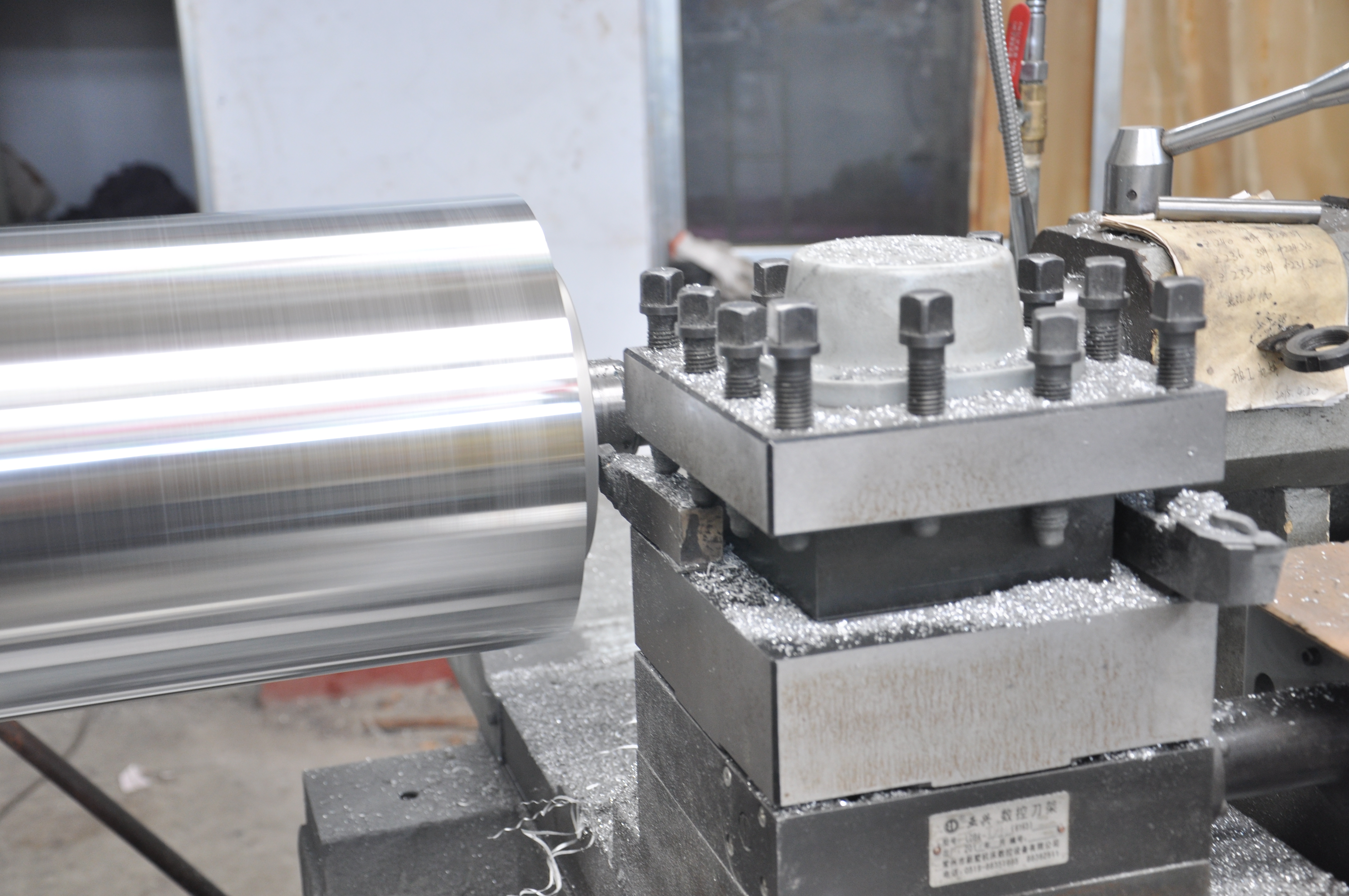

    →Mechanical treatment

    →Copper plating

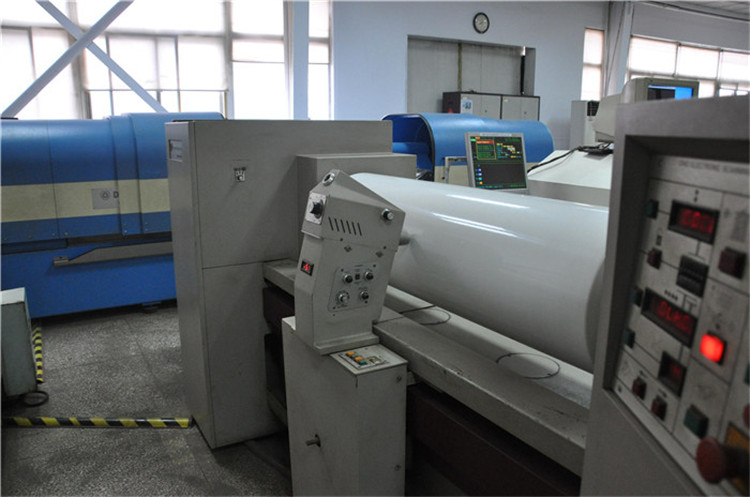

    →Electric carving

    →Chroming

    →Printing sample making

    →Exfactory inspection

    →Packaging and delivery



    3.Features



   A.Circumference of the cylinder: 100-1500mm

  Width of the cylinder: 50-8200mm,normally 50mm longer than the rubber roller on the machine.

   B.Precision on the cylinder production

Surface Hardness

≥HRC50,with strong corrosion resistance

Roughness

≥ Ra0.16

Temperature difference

≤±1°C

Thermal deformation

≤0.01mm

Concentricity

0-15microns

Straightness

≤0.2mm

Cylindricity

≤0.2mm

   4.Advantages of rubber roller

   A. High-quality materials for base roller:

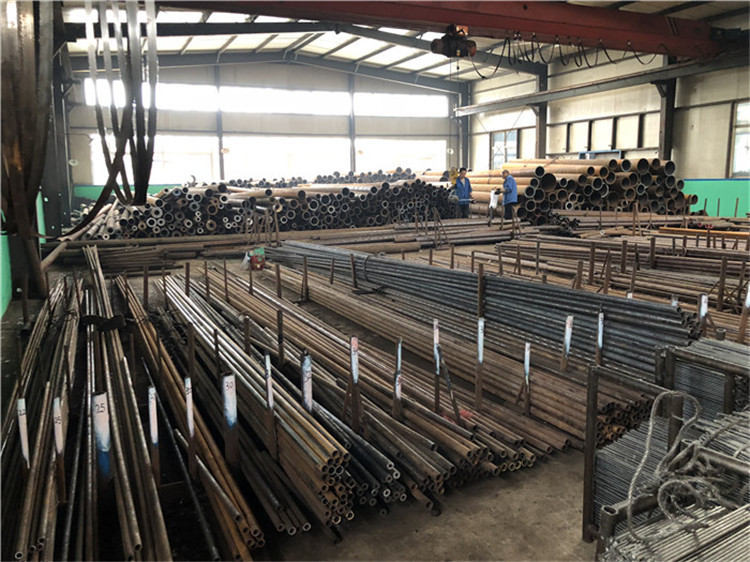

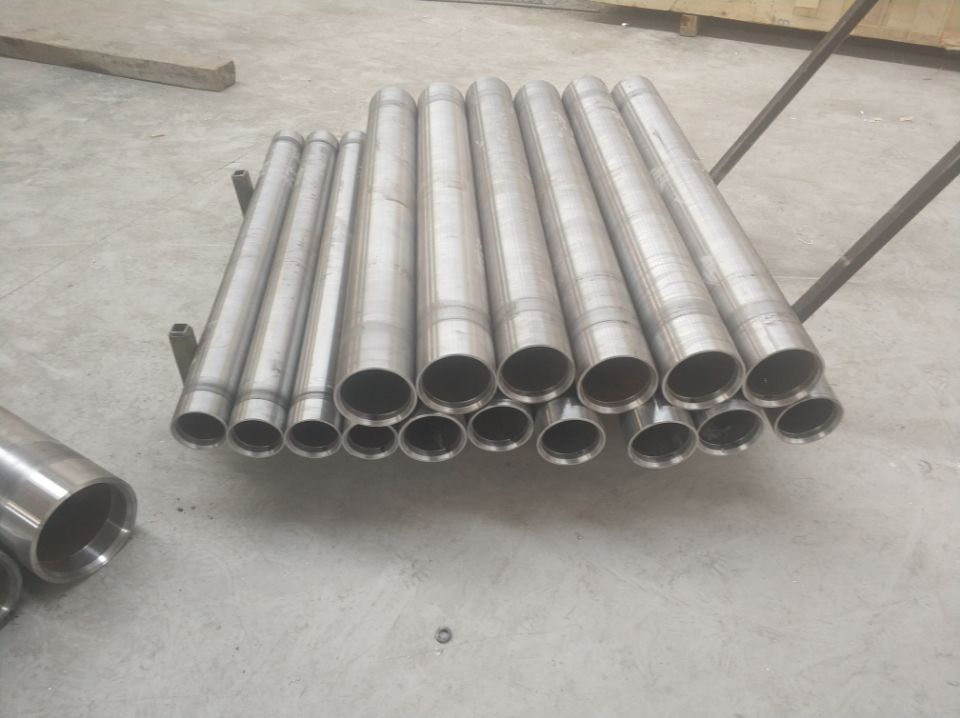

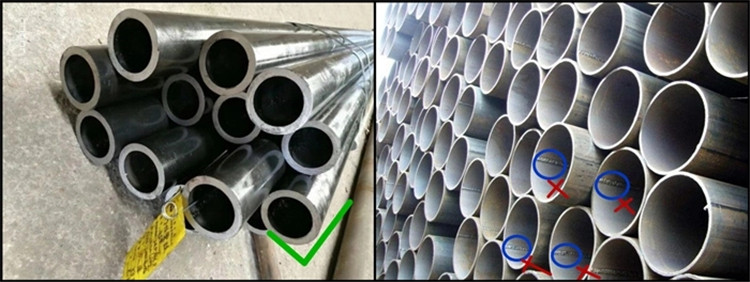

   We adopt 45# seamless steel tube as the base roller,which have enough stiffness to make sure the bending deflection is not over the         allowable value under heavy pressure.

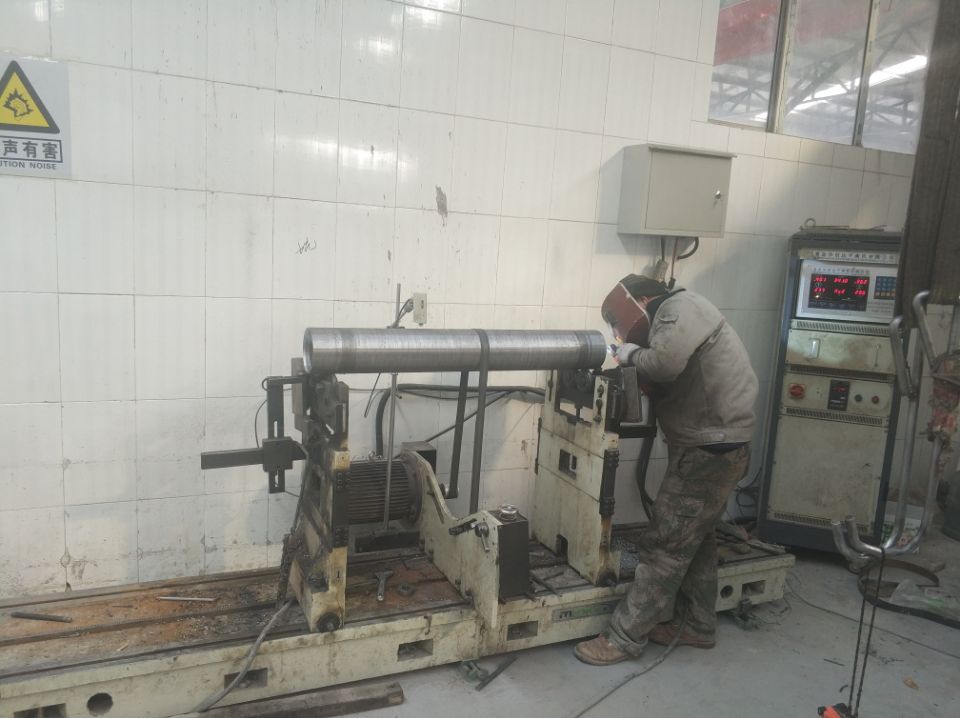

   BDynamic balance test twice

   We will do dynamic balance test twice on each cylinders,the radial jumped error will be less than±0.005,which will help do evenly             distribution of the inks on the printing material.





  C. Heating treatment process

  This process will increased hardness and to prevent the cylinder from deformation and will assure the geometric accuracy and long     service life.



  D. Packaging

  We use plywood cases and wollen blanket to protect the cylinders.And we will also smear anti-rust oil on the cylinder surface which will help prevent surface oxidizing and rusting under moisture.

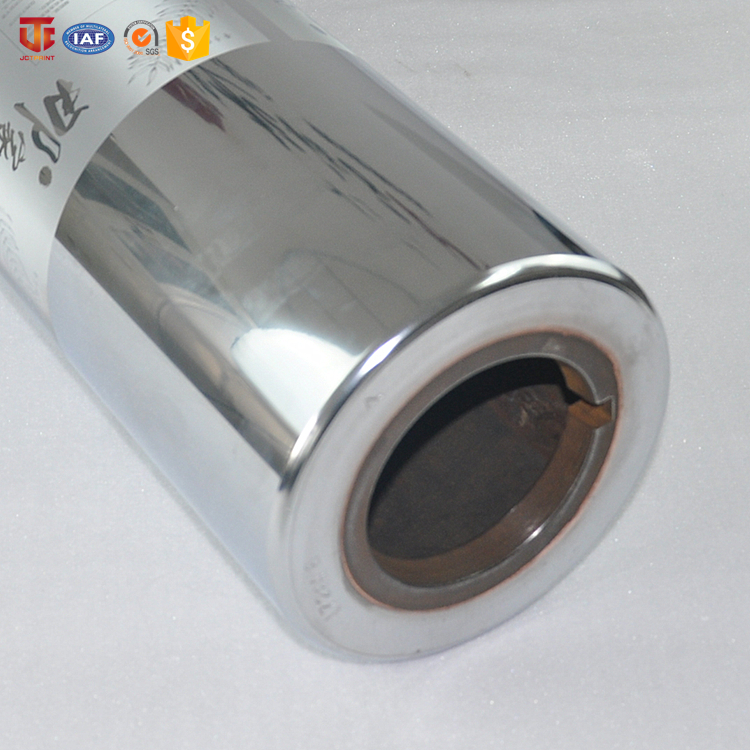

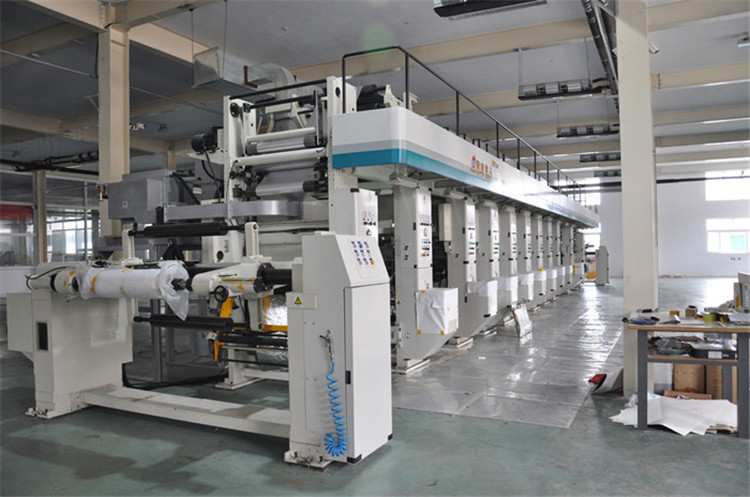

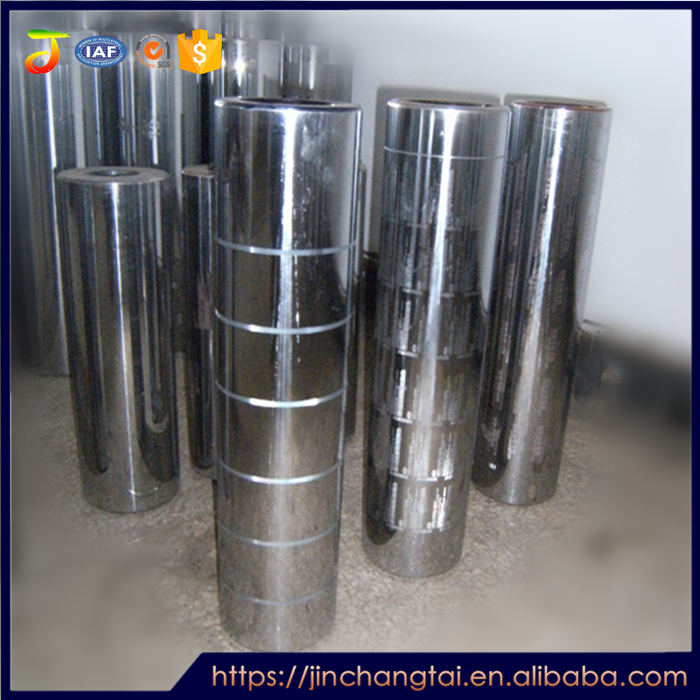

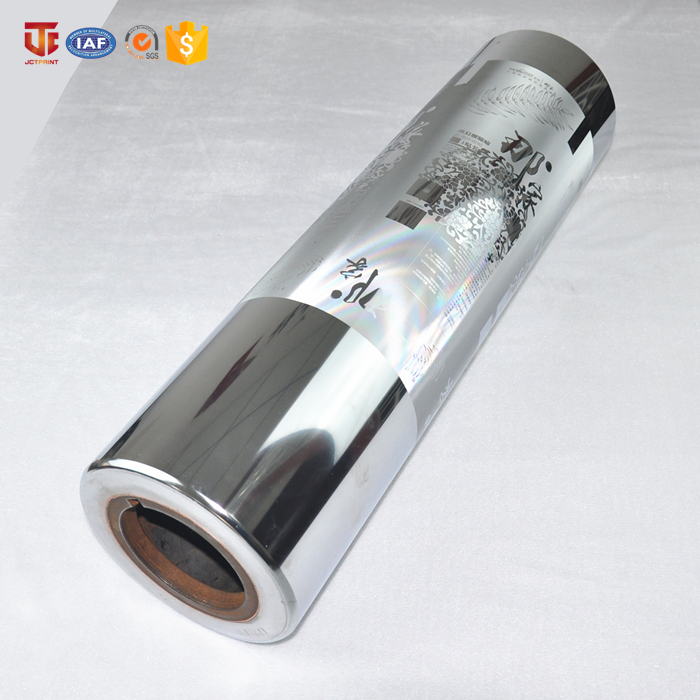

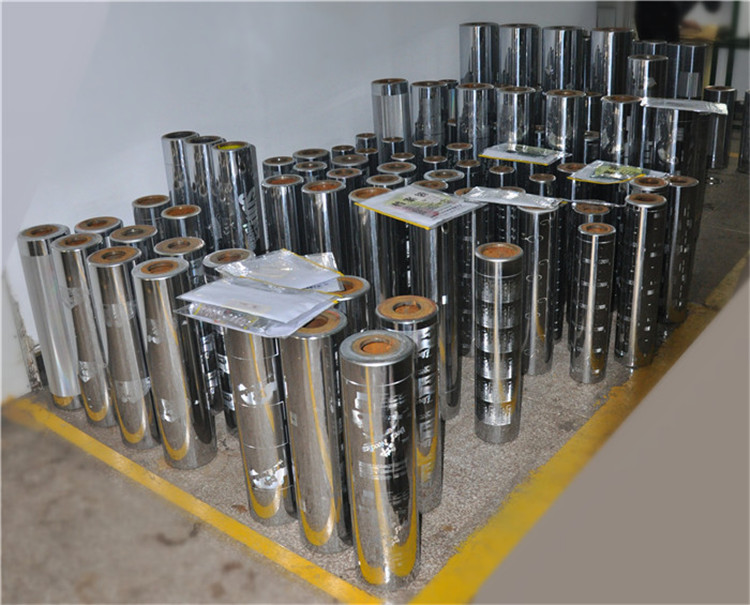

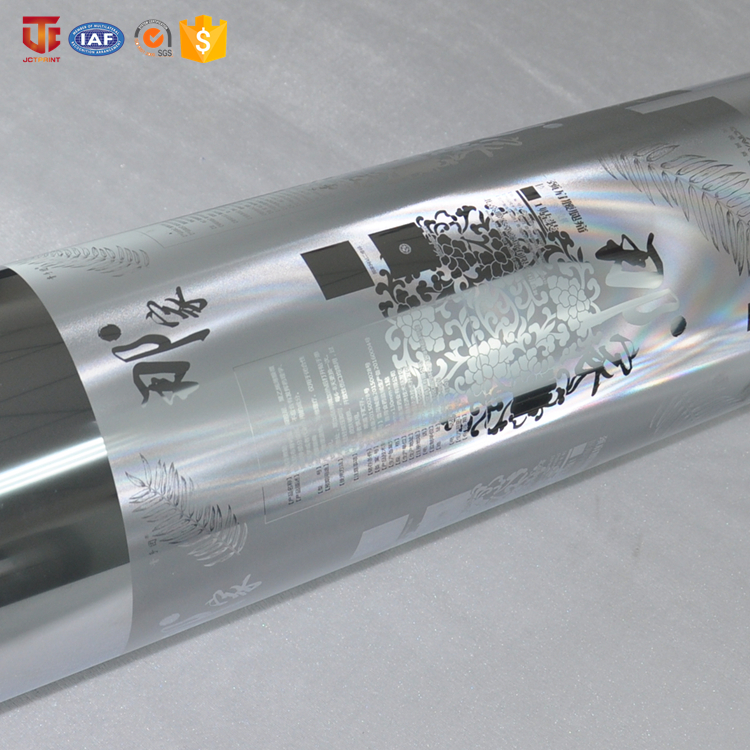

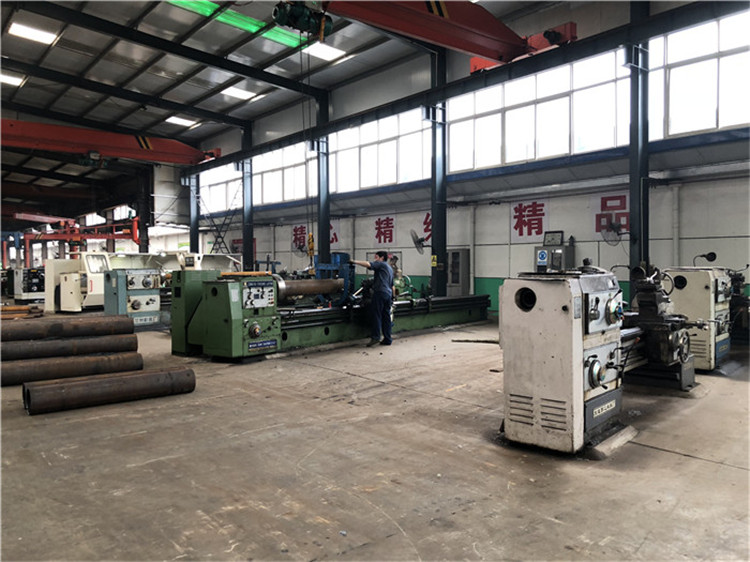

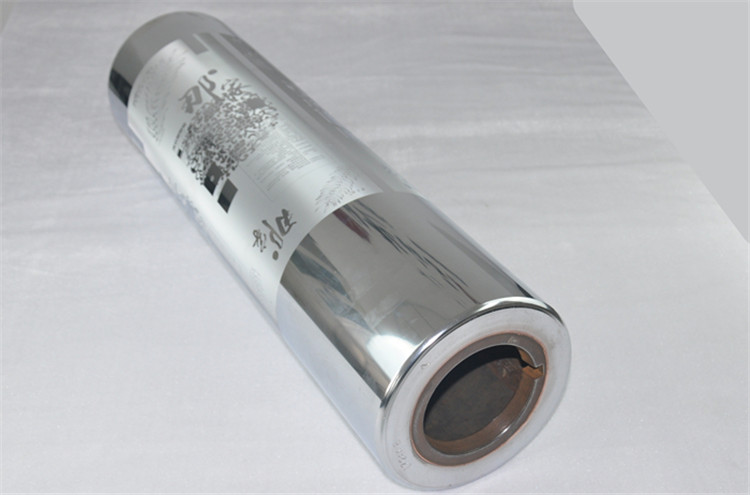

 5.Product pictures and workshop:

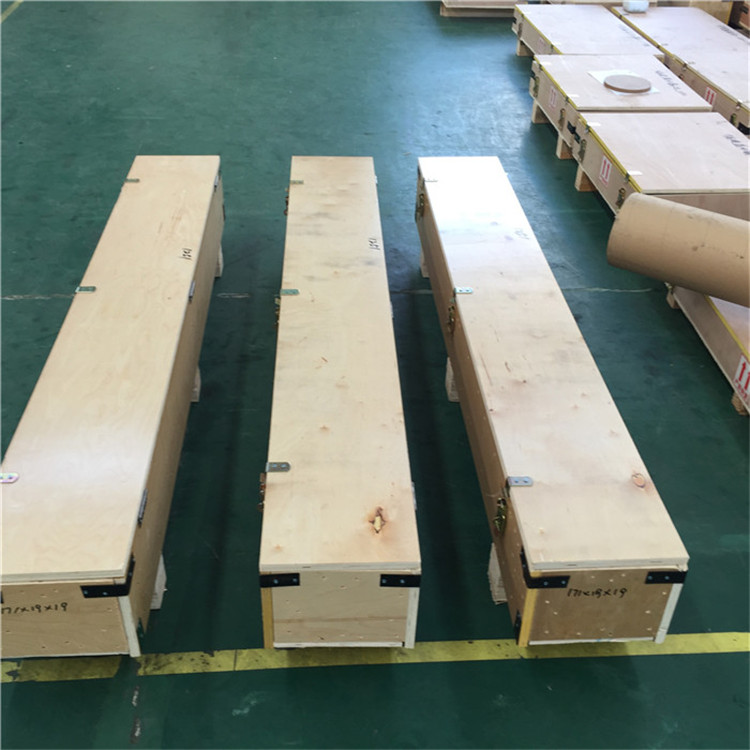

6.Packaging:

 7.Company information:



Why choose us?

  1)We have over 20 years experience to produce cylinders.

  2)We have the professional design teams to serve customers,surface and reverse printing available.

  3)We have the strict quality system to make sure the quality of every process.

  4)We can assure fast time of delivery---7-10 days after payment and color separation file confirmed.
