EPDM rubber roller for offset printing machine
EPDM rubber roller for offset printing machine EPDM rubber roller for offset printing machine EPDM rubber roller for offset printing machine EPDM rubber roller for offset printing machine EPDM rubber roller for offset printing machine

EPDM rubber roller for offset printing machine

Product ID : JCT-RR-L012
Product Tags :
Product Attributes :

We are using #45 steel , #201stainless steel #304stainless steel and 5# aluminum seamless pipe as the base roller.And we are adopting a reasonable thickness base roller according to customer’s drawing.

Product Description

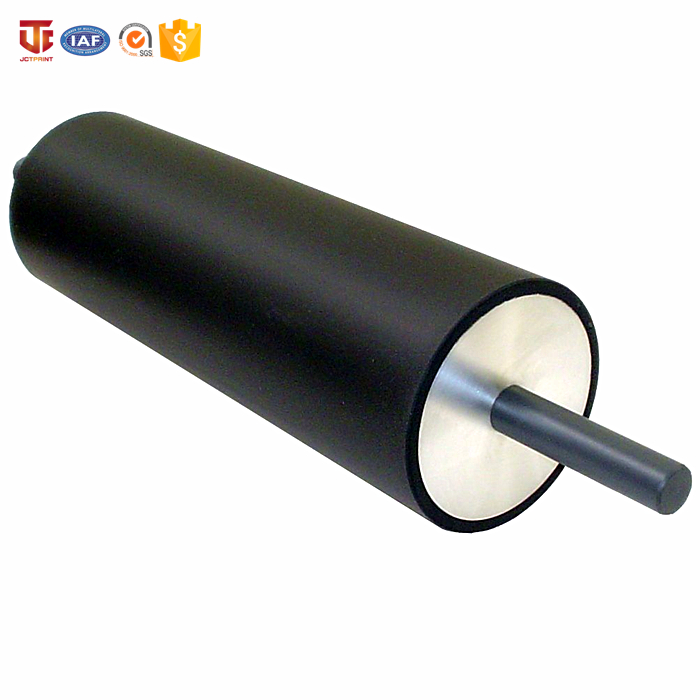

EPDM rubber roller for offset printing machine

1.Company information:

Based on over 10 years exporting experience in printing lines,our company can provides all kinds of solutions for printing companies.We mainly specialize in supplying printing machines,machinery parts,raw materials,finished printing products and so on.

2.Application of rubber roller:

Mainly used in papermaking, printing and dyeing, printing, grain processing, metallurgy, plastic processing, etc.

3.Features of rubber roller:

A.Excellent oil resistance, alkali resistance, aging resistance and good performance

B.Good heat resistance, high mechanical strength and wear resistance

C.Ozone-resistant aging

4.Specification of rubber roller:

Size

According To Customer's Drawing
(For offset printing roller, please tell us the model  and we can check if we have the drawing )

Dimension

10MM-1500MM,Length:50MM- 8200MM

Material

NBR, Silicone, Rubber, Polyurethane, EPDM,  hypalon ETC

Hardness

18A-100

Tolerance

0.05mm

Temperature

According customers' requirements

Color

Red, Black, White, Clear, etc can do the color base on your pantone NO.

Roll core

stainless steel,45#steel or 20#steel or 5#aluminum seamless pipe

5.Advantage of rubber roller:

A.Raw materials:

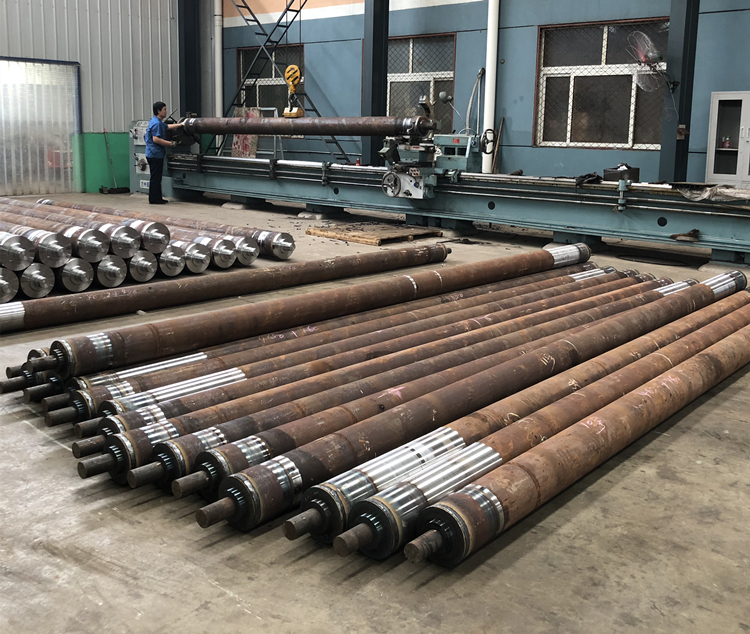

1) Base roller:

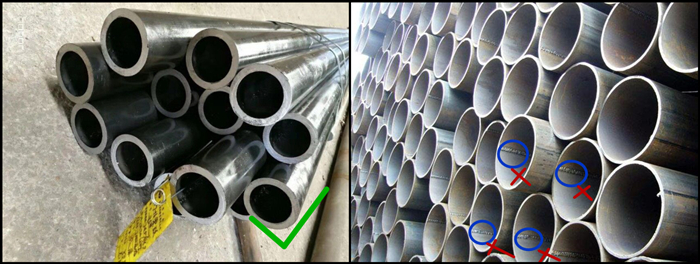

We are using #45 steel , #201stainless steel #304stainless steel and 5# aluminum seamless pipe as the base roller.And we are adopting a reasonable thickness base roller according to customer’s drawing.

Some manufacturers will reduce the thickness of the steel pipe in order to get the price advantage.Such roller can’t meet the standards.But we won’t do that.

2) Rubber

Our rubber are all imported from Germany or the US and then we mix them in our factory.The rubber coating technical we are using is winding technical. we casting the rubber on the base roller layer by layer and then vulcanize it to make the green rubber into mature rubber.

While other manufacturers are using sheet coating technical,and the rubber is cold in processing and will cause adhesion problems easily.

B.Production process:

1) Hot charging technicals:

Adopt hot charging technicals to install the shaft head, and then weld after contraction to ensure the quality of shaft installation.While other supplier are welding the shaft head directly.

2) Dynamic balancing:

We will do 3 times of dynamic balancing test in the process of production of each rubber roller,which will ensure the using effect.

In general, If it can displayed within 10g on the dynamic balancing device, it is called dynamic balancing. But we can do less than 2g.

3) Testing by making small sample before mass production

We will make a small sample before the official production, after vulcanization, 24 hours later we will check the hardness, color, and Impurity situation.

We will control the hardness tolerance within 3degree.

If it is not qualified we will change the formulated immediately and to make the sample again till all the data reach the customer’s request.

C. Quality control Department

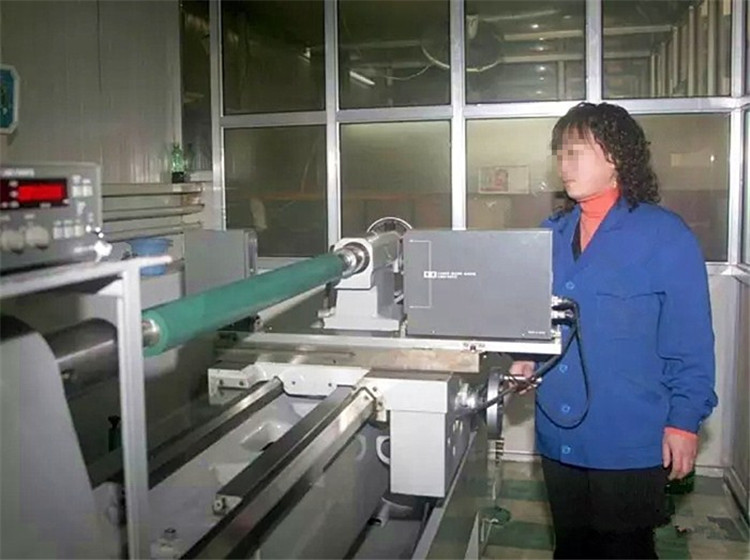

Using all-imported laser tester to ensure that the geometric size and the accuracy of the roller can reach 0.01 mm;

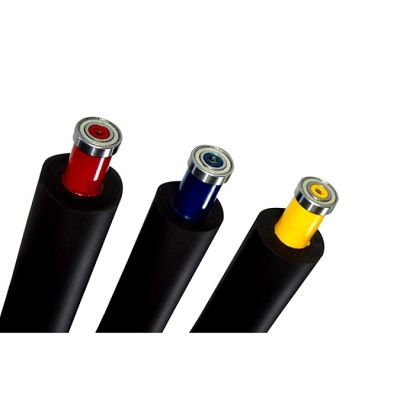

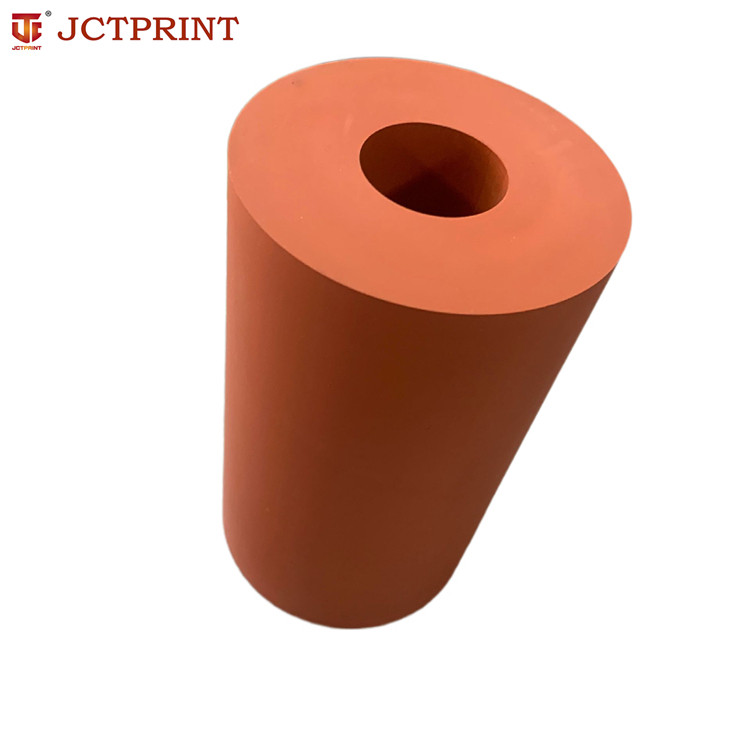

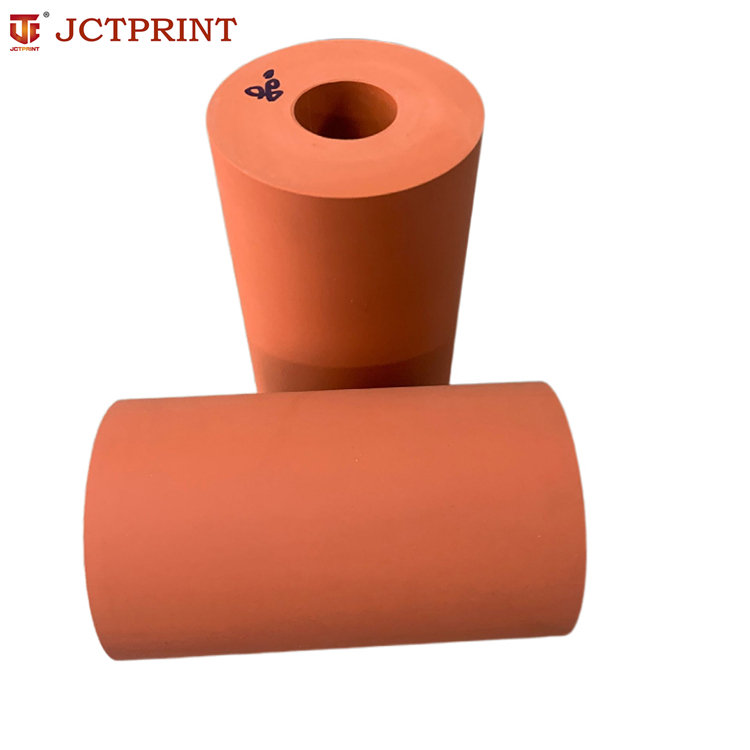

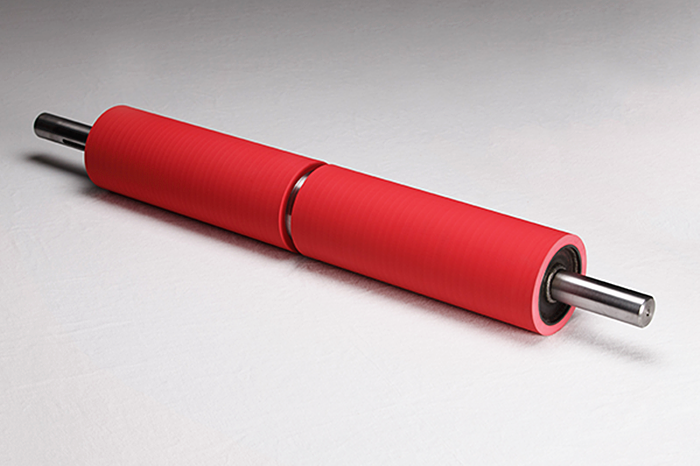

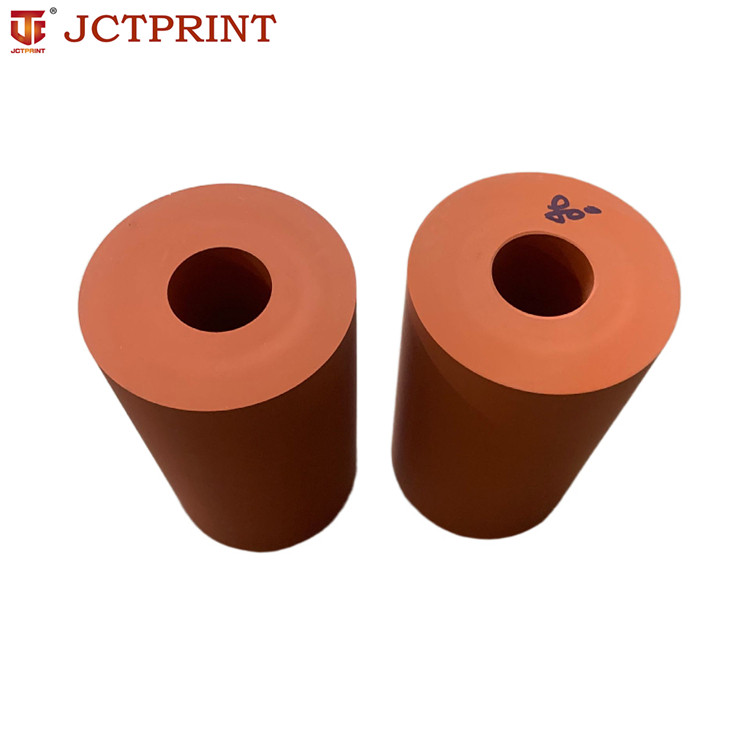

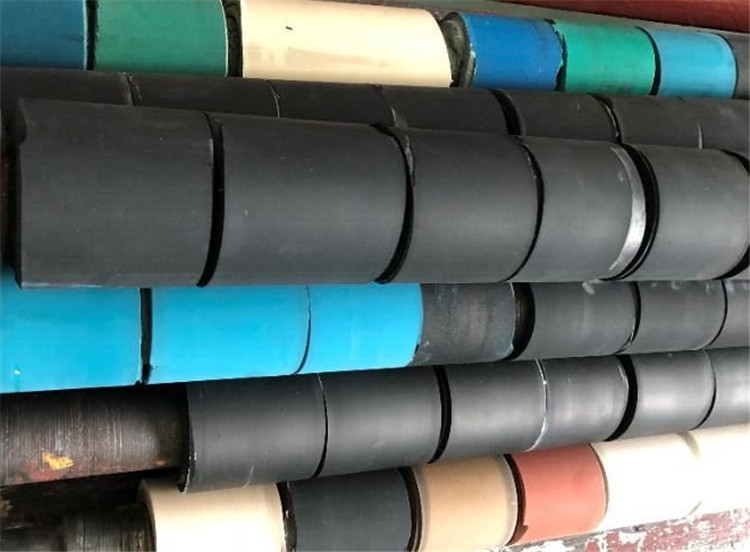

6.Product pictures:
