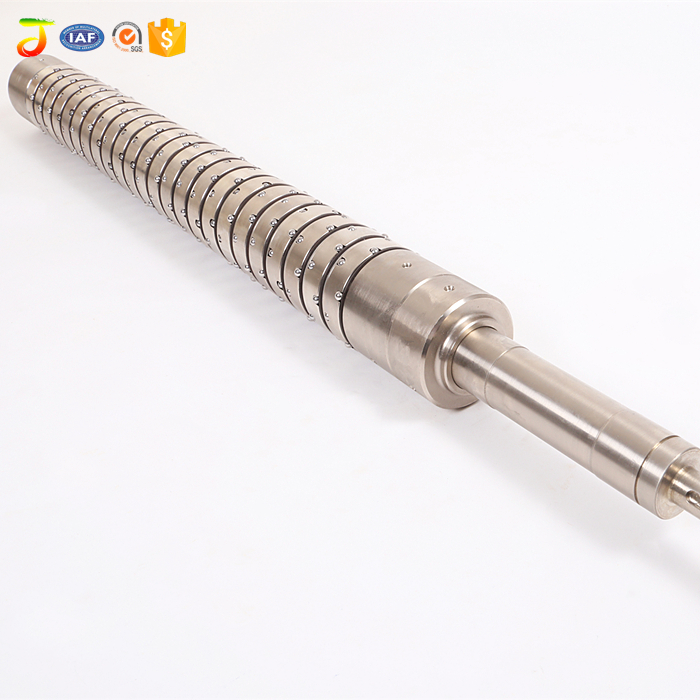

3 inch Ball Type Pneumatic Air Friction Shaft For Slitting Machine
3 inch Ball Type Pneumatic Air Friction Shaft For Slitting Machine 3 inch Ball Type Pneumatic Air Friction Shaft For Slitting Machine 3 inch Ball Type Pneumatic Air Friction Shaft For Slitting Machine 3 inch Ball Type Pneumatic Air Friction Shaft For Slitting Machine 3 inch Ball Type Pneumatic Air Friction Shaft For Slitting Machine

3 inch Ball Type Pneumatic Air Friction Shaft For Slitting Machine

Product ID : JCT-AD-106
Product Tags :
Product Attributes :

The ball type pneumatic air friction shaft is applied mainly to wind shaft, or unwind shaft in special occasions.

The body of the air friction shaft is made from chrome-plate steel or hard anodized aluminum. The friction plate can be made from polyurethane, polyethylene, or rubber to max tension required.

To meet our customers’ special requirements, according to the drawing, we can make steel shaft head with different sizes.


Product Description



3inch Ball Type Pneumatic Air Friction Shaft For Slitting Machine




Product Description

1.Description of differential air shaft

1). Introduction

Differential air shaft is mainly used for sub-section equipment  that has high requirement on final products and fast speed.The differential ring on it can slip independently. Controlled by the tension system, let the compressed air which has a certain pressure come to axle core, so that it will produce friction torque between the friction parts and the slip ring, and realize constant tension coiling and it will help solve the unwinding problems and material damages caused by uneven thickness and tension of each roll material.


2) Classification

A.Pneumatic locking type

B.Mechanical locking type


3) Structure

Central air pressure differential shaft are made of core roll, differential ring, airbags, friction parts, sealing rings.



2.Application of differential air shaft


A.The applicable Machine

It is used for slitting machine,coating machine,cutting machine,printing machine,compounding machine,paper making machine,bag makeing machine, embossing machine and so on .It can greatly improve the working efficiency and the quality of products.


B.The applicable Material

Differential air shaft has been widely used in plastic film including electronic, capacitor, battery film, plastic wrap, packaging, composite film, metal foil such as copper foil and  aluminum foil, paper and pvc sheet.




3.The advantages of our products


1). Hight quality material for the base shaft and spare parts

The body of the differential shaft is made from steel or stainless steel.We will check the surface roughness,straightness, dynamic balance,cylindricity and so on to make sure it's qualified to use.


The friction plate can be made from polyurethane, polyethylene,or rubber.They has good consistency of dynamic and static friction coefficient, less affected by temperature ,high wear resistance and long service life.It's good to realize max tension required.And we can customize according to customer’s drawing or special requirement.



2).Surface Treatment

Blacking,polishing,anodize,chrome plating,zinc plating,nickel plating,tinting.
The overall quenching and tempering treatment improve the wear resistance and corrosion resistance,which make it possible to use in a variety of environment.





3). Quality control

We have the quality control system during the whole production fromthe very beginning to the end and our principle is to make sure each shaft is qualified.

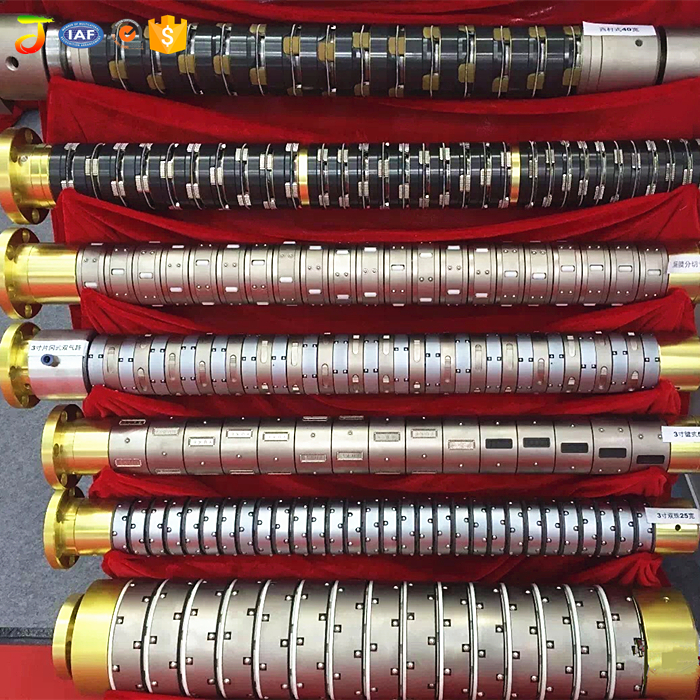

Detailed pictures

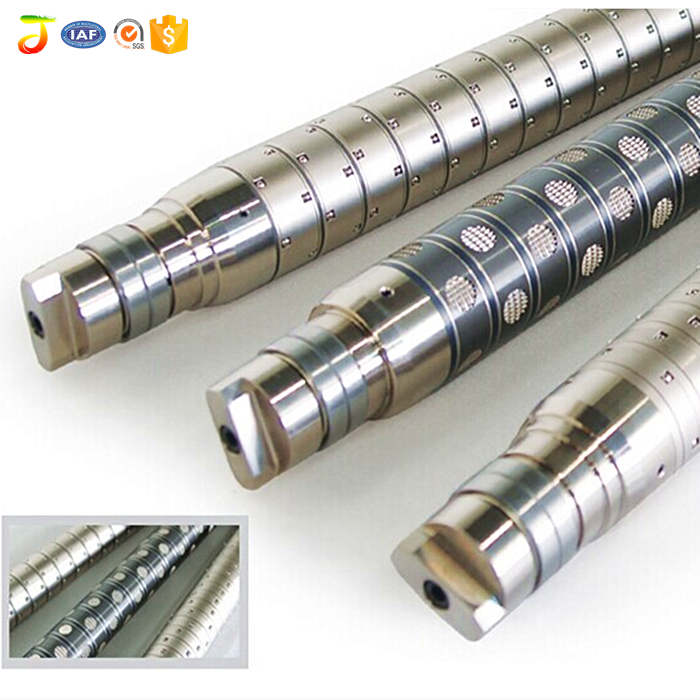

 Axial Inflatable Friction air shaft



11 (2).jpg

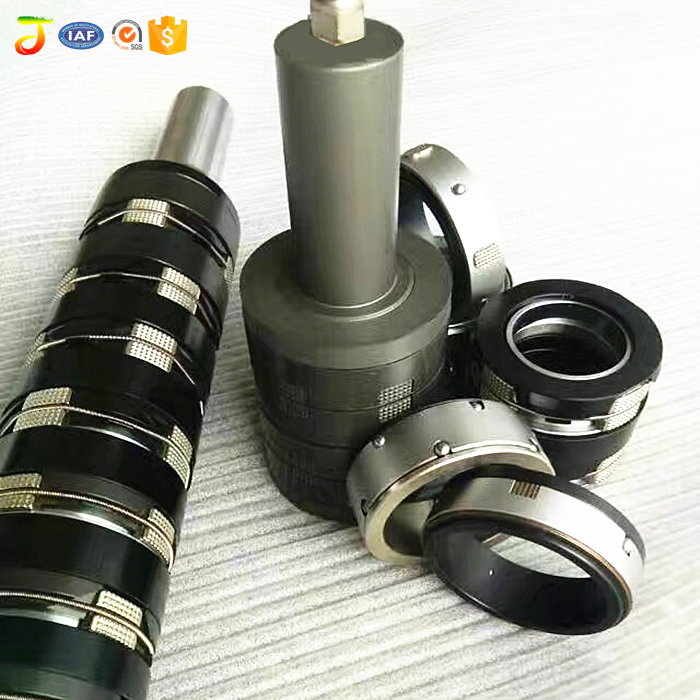

 Radial Inflatable Friction air shaft



11 (1).jpg



New Design Double Dall Double key air shaft






More products view:







Company Information





FAQ


1.   How should I place the order?



For differential air shaft , please send us your drawing and your request.



2. What is your MOQ?



1 Piece.



3. What material of your shaft is made of?



45# stee or 306 stainless steel.



4. Can you produce relative product,like adapter,hand shank?



Yes,Sure.
