How to install the punching die on the die cutting machine?

How to install the punching die on the die cutting machine?

How to install the punching die on the die cutting machine?

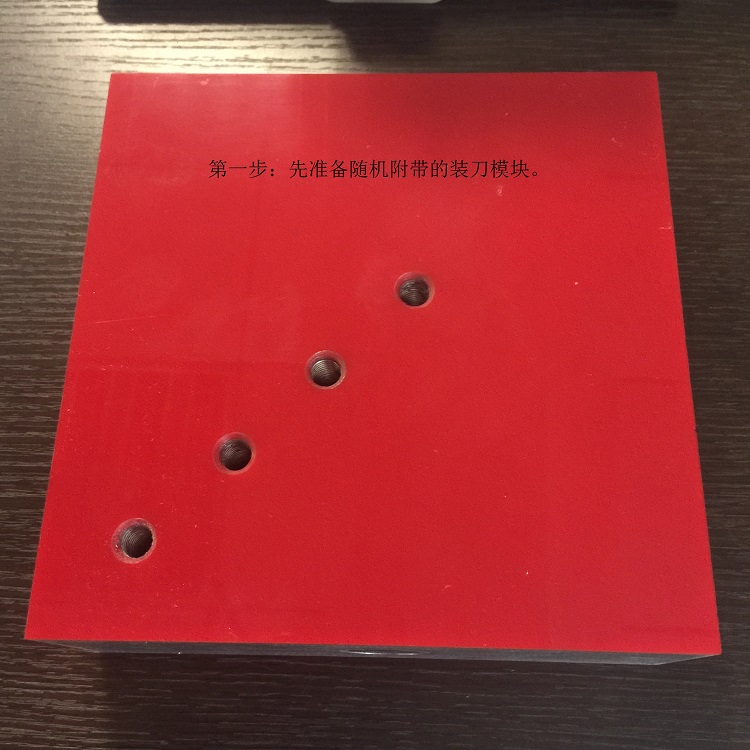

Step 1: Prepare the supplied tooling module first.

Step 2: Dig the uncut product into a small hole to expose the blocked screw hole.

Step 3: Align the product along the left and right edges of the module and secure with double-sided tape or film.

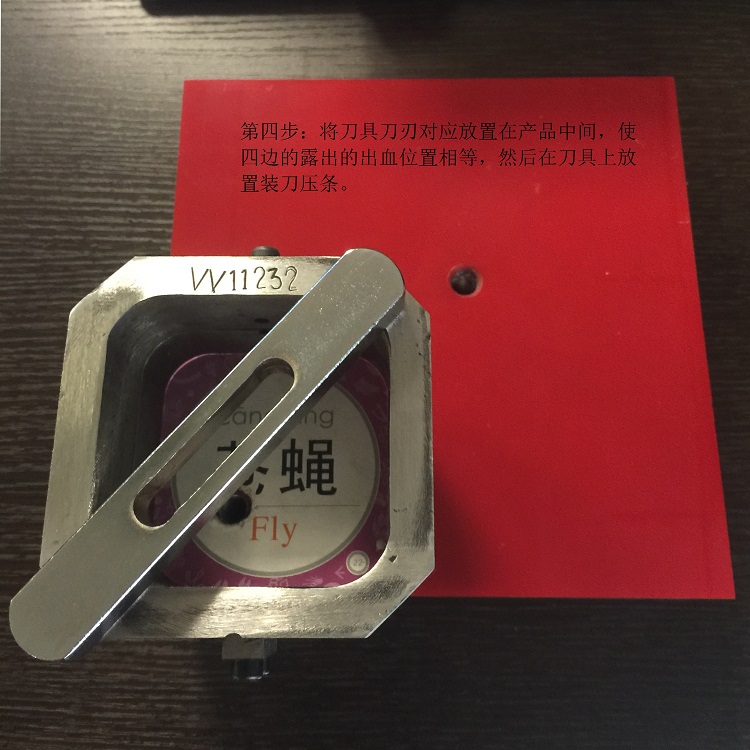

Step 4: Place the cutter edge in the middle of the product so that the exposed positions on the four sides are equal, and then place the knife press strip on the mould .

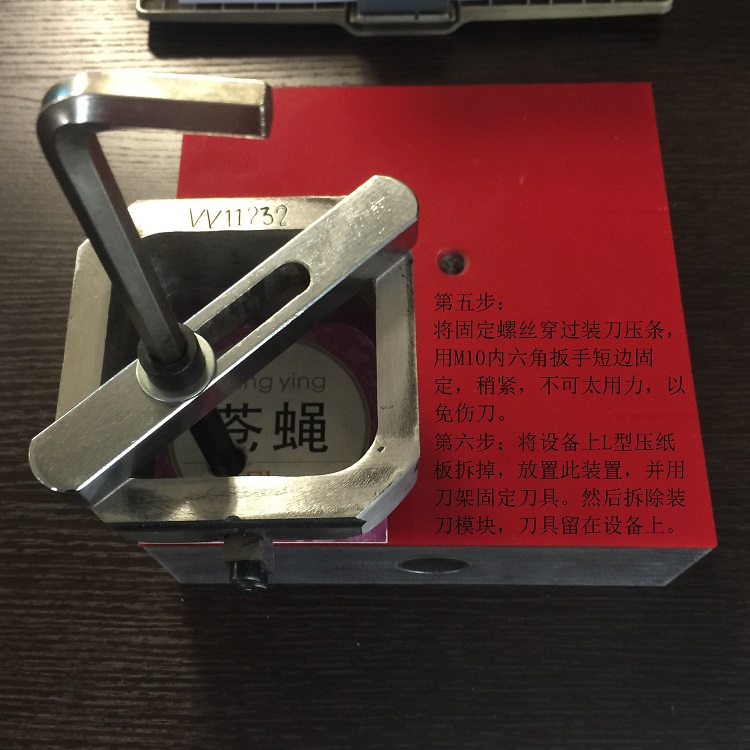

Step 5: Pass the fixing screw through the press strip and fix it with the M10 Allen key on the short side. It should be tight, not too hard, to avoid hurting the knife.

Step 6: Remove the L-shaped platen from the machine, place this device, and secure the knifel with the knife holder. Then remove the tooling module and leave the knife on the machine.
